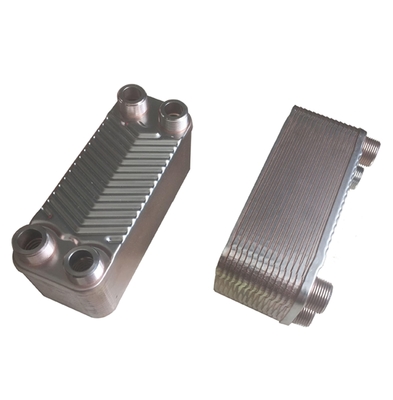

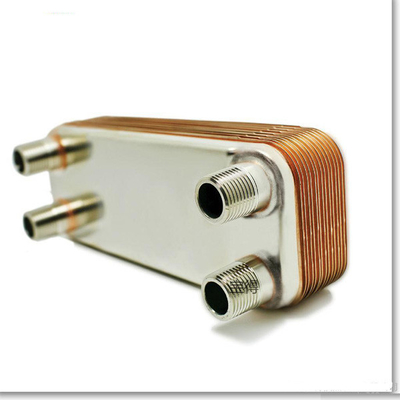

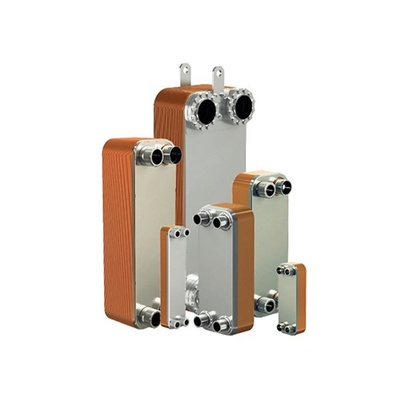

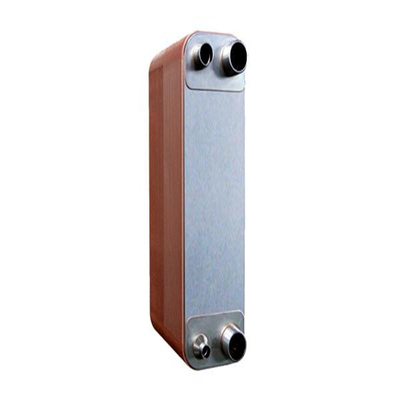

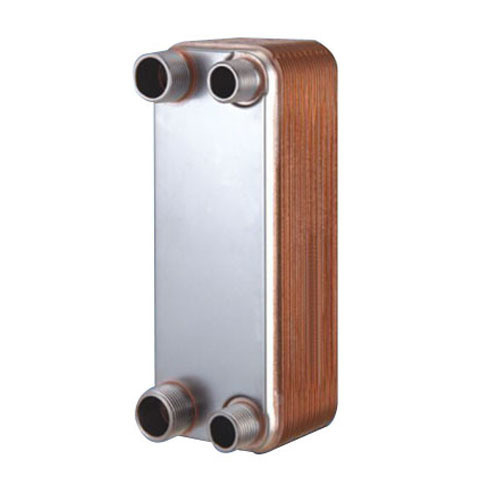

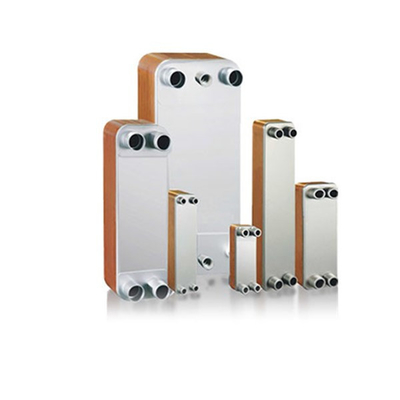

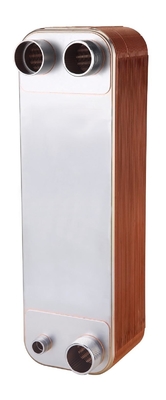

ECOICE Copper Brazed plate heat exchanger is composed of a lot of stainless steel plates and front and rear covers, it is separated copper sheet (or nickel) with high purity and brazed in high temperature furnace.In order to achieve the best heat transfer effect, All corrugated plates will be combined with velocity heat transfer plate with high, middle and low level according to the clients' requirements. It has a compact structure without gasket and outer frame to operate in the condition of high temperature and high pressure.
Model B3-012
Height x width :192x73mm
Hole distance :154x40mm
Design pressure: 1.0MPA 3.0MPA
Test pressure :1.5MPA 4.5MPA
Max Threaded Connection: 3/4"
Max Welded Connection: 7/8"
Plate material AISI :316L 304
Max No. Of plate :50
Channel : H
Weight(kg): 0.4+0.044n
Heat exchange area(m2): (n-2)× 0.012
Side valumn : 0.018× N/2 0.018× (n-2)/2
Design temperature : -196---+200 degree
Application :
Air dryer
Heat pump
Absorption chiller
HVAC
Radiant floor,
Snow melt,
Boiler and Solar water heat exchanger
Heat Recovery and oil cooler: hydraulic oil cooling, engine oil cooling, and fuel oil heating.
Steam heating
Flat plate heat exchanger
Beer wort cooler
Milk pasteurization
Wind turbine oil cooler
Marine oil cooler
If you have any interest , please contact us at any time .
