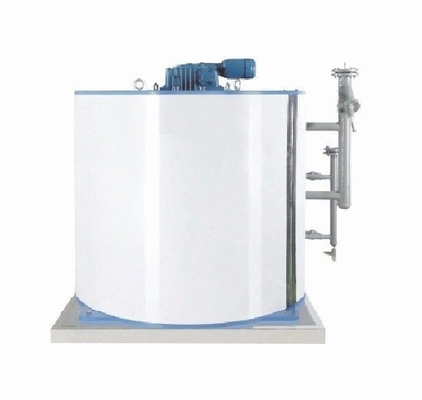

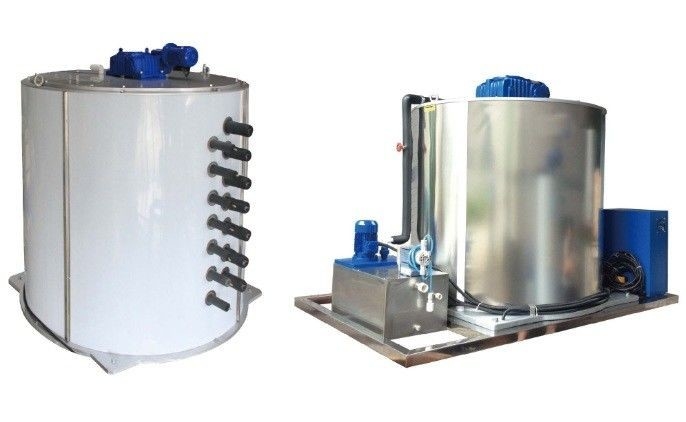

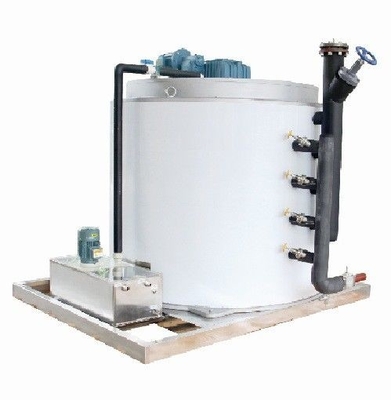

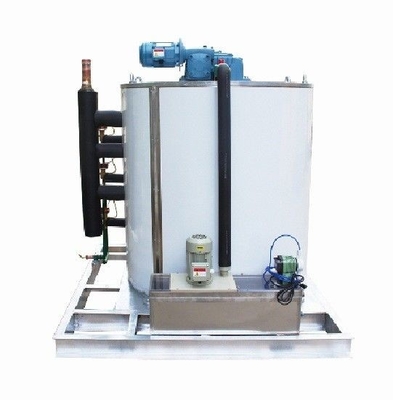

8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing

8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing

    • 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing
    • 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing
    • 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing
    • 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing
    • 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing
  • 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing

    Product Details:

    Place of Origin: China
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO-8T
    Item: 8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing
    Ice Shape: Flake Ice
    Application: Supermarket
    Cooling Method: Direct Cooling
    Ice Making: Flowing
    Cooling Way: Air Cooled
    Ice Temperature: -5℃~-10℃

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: usd5000-10000pc
    Packaging Details: wooden cases
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000pc per month
    Contact Now
    Detailed Product Description
    Cooling Way: Air Cooled Ice Temperature: -5℃~-10℃
    Water Temp.: 2℃~35℃

    8T/10T/15T/20T/25T/30T40T/50T Industrial Refrigeration Ice Flaker Evaporator for Fishing ​ ​:


    As the key part of the complete flake ice machine, the ice flaker evaporator plays important role in making ice. To match the various Ice flaker evaporators, you can make different choice about the refrigeration units in different refrigerant (R22, R404A or R717) by yourselves before place the order, let me know which refrigerant you'll choose.

    Characteristics:


    ---The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.
    ---Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.
    ---All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.
    ---The flake ice is glittering and translucent, hard and pure
    ---Ice making and dropping in high speed.





    Commercial Range Ice Flaker Evaporator Specification :



    Model ECO-8T ECO-10T ECO-15T ECO-25T ECO-30T ECO-40T
    Daily Output(Ton/24Hrs) 8 10 15 25 30 50
    Necessary Refrigeration Capacity (KW) 48 60 90 150 180 300
    Voltage 380V/50HZ/3P
    Reductor Power 0.55 0.55 0.75 0.75 1.5 1.5
    Water Inlet / Drain Pipe 3/4"  1/2" 3/4" 1/2" 3/4" 1/2" 3/4" 1/2" 3/4" 1/2" 3/4" 1/2"
    Dimension (mm) 1580*1500*1530 1580*1500*1670 1580*1500*2130 2130*1850*2550 2520*2250*2500 25500*2250*3000
    Weight (kgs) 950 1100 1550 2500 3000 3500
