Place of Origin: | China |
Brand Name: | ECOICE |
Certification: | CE |
Model Number: | ECO0.5T-R4A |
Item: | 0.3Ton / 300kgs Freshwater Air Cooling Commercial Flake Ice Machine for Supermarket |
---|---|
Daily Ice Output: | 0.3Ton / 24Hrs |
Cooling capacity: | 2kw |
Compressor Input: | 1.59kw |
Minimum Order Quantity: | 1 set |
---|---|
Price: | usd9000-25000/set |
Packaging Details: | wooden cases |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, D/P, T/T, Western Union |
Supply Ability: | 50000set per year |
Reductor Power: | 0.25kw | Water Inlet / Drain Pipe: | 1/2" |
---|---|---|---|
Power Supply: | 3P / 380V /50HZ |

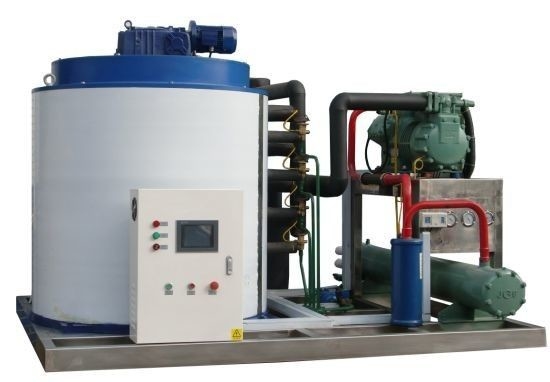

0.5ton / 500kgs commercial flake ice machine for fishery/meat/chicken
Technical Data As Below :
1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
2. Evaporating Temp : -20 ºC ;
3. Condensing Temp : 40 ºC ;
4. Power supply: 3P/380V/50HZ
5. Flake ice thickness:1.6-2.3 mm
6. Refrigerant gas type : R404A
Detailed Specification of Ice Flake Machine as below :
Model | ECO0.3T-R4A | ECO0.5T-R4A | ECO1T-R4A | ECO1.2T-R4A | ECO1.5T-R4A | ECO2T-R4A | ECO2.5T-R4A | ECO3T-R4A |
Cooling Capacity | 2KW | 3.3KW | 5.6KW | 6.6KW | 9.8KW | 11.6KW | 15.5 KW | 17.2KW |
General Power | 1.95KW | 2.49KW | 4.22KW | 4.72KW | 6.75KW | 8.11KW | 9.75KW | 10.88KW |
Compressor Input | 1.59KW | 2.2KW | 3.8KW | 4.3KW | 6.33KW | 7.2KW | 8.83KW | 9.97KW |
Reductor Power | 0.25KW | 0.18KW | 0.18KW | 0.18KW | 0.18KW | 0.37KW | 0.37KW | 0.37KW |
Cooling Mode |
Air
Cooling
|
Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Weight | 190KG | 300KG | 450KG | 460KG | 480KG | 500KG | 550KG | 600KG |
DImension(mm) | 1050*700*700 | 1280*800*800 | 1320*900*900 | 1320*900*900 | 1400*9500*1000 | 1500*1100*1200 | 1500*1100*1200 | 1700*1200*1320 |
With ice bin | 1050*800*1480 | 1280*1085*1850 | 1320*1185*2100 | 1320*1185*2100 | 1500*1420*2300 | 1735*1420*2500 | 1735*1520*2840 | 1875*1520*3050 |
Model | ECO5T-R4W | ECO8T-R4W | ECO10T-R4W | ECO12T-R4W |
Daily Output (Ton/24Hrs) | 5 | 8 | 10 | 12 |
Cooling Capacity (KW) | 38.7 | 54.1 | 76.5 | 83.3 |
General Power (KW) | 22.55 | 33 | 45.5 | 45.6 |
Compressor Input (KW) | 20.5 | 27.1 | 40.7 | 47.5 |
Reductor Power(kw) | 0.37 | 0.55 | 0.55 | 0.55 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Cooling Tower(m3/h) | 20 | 30 | 45 | 50 |
Water Inlet/Drain Pipe | 3/4",1/2" | 3/4",1/2" | 3/4",1/2" | 3/4",1/2" |
Weight (kgs) | 980 | 1670 | 2020 | 2260 |
Dimension(mm) | 1800*1500*1470 | 2200*1890*1650 | 2200*1900*1750 | 2200*1900*1900 |
** : We also could follow client detailed requirement to assemble correct machine .
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
Contact Person: Mr. Derek
Tel: 18653159672
