Shell and Tube Heat Exchanger for Pool/industrial shell and tube heat exchanger
With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.
Features:
- High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
- Max design temperature:208°C
- Max. working pressure:1.3Mpa
- Material: All stainless steel 316L,Titanium or according of customer's requirement
- Warranty period:5 years
Advantages:
- High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
- Compact configure, occupy small area,one tenth as the traditional equipments
- Titanium material, endure high temperature, pressure and corruption.
- Helix screw thread elasticity heat exchange bundle, eliminate the stress
- Design flux speed is 5.5m/s, less dirt.
- ASME standard VIII-1
- Easy clean and maintain
- Big flow volume
- Compactable
- Easy installation and durable

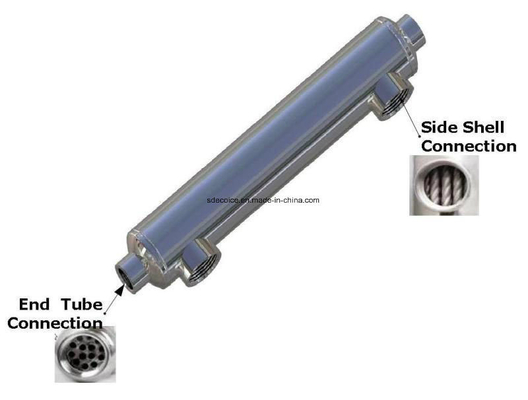

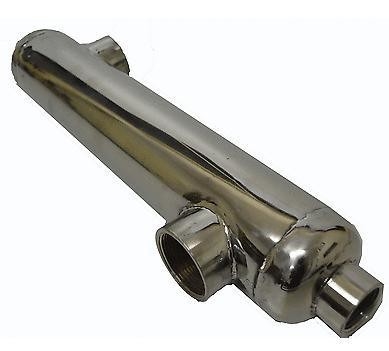

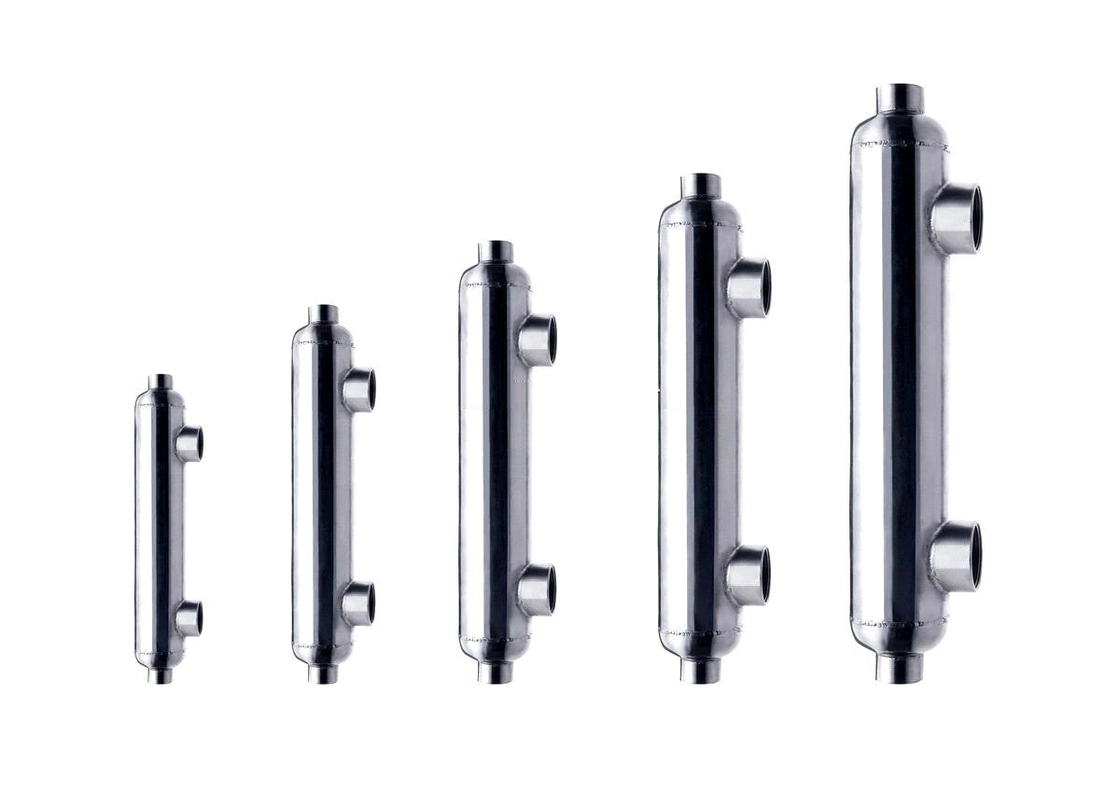

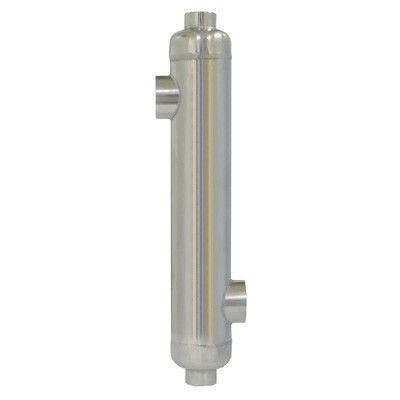

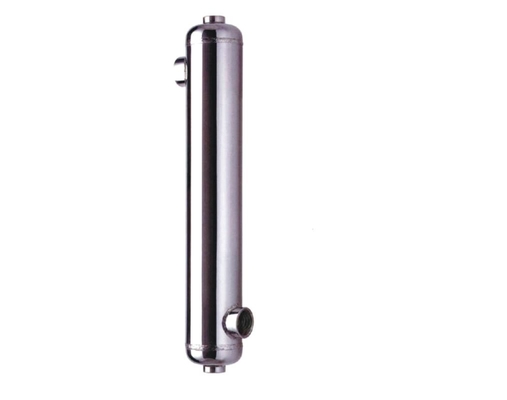

Specification of stainless stell shell and tube heat exchanger for swimming pool :
| Model |
A (mm) |
B(mm) |
C |
E |
| ECO-55K |
60 |
360 |
3/4" |
1" |
| ECO-85K |
60 |
520 |
3/4" |
1" |
| ECO-155K |
76 |
450 |
1" |
1-1/2" |
| ECO-210K |
76 |
570 |
1-1/2" |
1-1/2" |
| ECO-300K |
76 |
780 |
1-1/2" |
2" |
| ECO-360K |
89 |
830 |
1-1/2" |
2" |
| ECO-600K |
114 |
900 |
2" |
2-1/2" |
| ECO-1200K |
133 |
900 |
2" |
2-1/2" |
| ECO-2400K |
168 |
950 |
2" |
4" |
| ECO-3000K |
168 |
1100 |
2-1/2" |
4" |
| ECO-3600K |
168 |
1300 |
2-1/2" |
4" |
| ECO-4500K |
219 |
1070 |
2-1/2" |
4" |
| ECO-5000K |
219 |
1120 |
2-1/2" |
4" |
| ECO-6000K |
219 |
1220 |
2-1/2" |
4" |
| Model No. |
Normal Capacity |
Pool Capacity |
Heat Transfer Area |
| KW |
Kbtu/hr |
Gallons@1oF/hr |
Literes@1o C/hr |
m2 |
| ECO-55K |
16 |
55 |
4700 |
32021 |
0.15 |
| ECO-85K |
25 |
85 |
7300 |
49735 |
0.25 |
| ECO-155K |
45 |
155 |
13300 |
90613 |
0.33 |
| ECO-210K |
61 |
210 |
18000 |
122634 |
0.44 |
| ECO-300K |
88 |
300 |
25800 |
175776 |
0.64 |
| ECO-360K |
105 |
360 |
31500 |
21460 |
0.85 |
| ECO-600K |
175 |
600 |
52500 |
357684 |
1.55 |
| ECO-1200K |
352 |
1200 |
105600 |
719455 |
2.01 |
| ECO-2400K |
704 |
2400 |
211200 |
1438910 |
4.47 |
| ECO-3000K |
880 |
3000 |
264000 |
1798638 |
5.30 |
| ECO-3600K |
1056 |
3600 |
316800 |
2158365 |
6.42 |
| ECO-4500K |
1320 |
4500 |
396000 |
2697956 |
8.46 |
| ECO-5000K |
1467 |
5000 |
439000 |
3000000 |
8.87 |
| ECO-6000K |
1760 |
6000 |
526800 |
3600000 |
10.64 |
Application : 1.Typica:l residential apply to
In-floor heating,
Swimming pools, spas heating,
Domestic hot water heating,
outdoor wood furnances ,
hot tube heating
Driveway snowmelts
2.Typical industrial apply to:
Oil cooler or heating,
Steam condenser,
District/central heating,
Transmission and engine cooler,
Boiler sample cooler,
Waste water heat recovery,
Industry process
