    Product Details:

    Place of Origin: China
    Brand Name: ECOICE
    Certification: CE
    Model Number: SLHE 2
    Item: SLHE Series Refrigerant Suction Line Desuperheater
    Raw Material: Copper Tube
    Structure: Tube Heat Exchanger

    Payment & Shipping Terms:

    Minimum Order Quantity: 500pc
    Price: usd30-100 /pc
    Packaging Details: cartons+wooden cases
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000000 per month
    Contact Now
    Detailed Product Description
    Liquid Flow Rate: 0.3~6m3/h Voltage: 110V/220V/380V


    heat exchange part economizer/subcooler/superheater

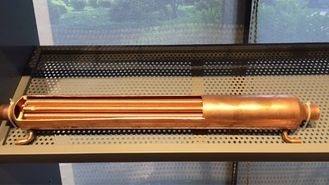

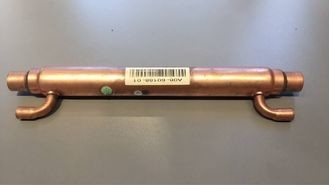

    Suction Copper Heat Exchangers are  intended for application on refrigeration systems to transfer heat between liquid refrigerant leaving the condenser on the high pressure side of the system and refrigerant
          vapor leaving the evaporator on the low pressure side of the system.


    Suction copper heat exchanger main advantage :

    • evaporate any liquid in the suction line before it enters the compressor
    • subcool any vapor in the liquid line before it enters the TXV
    • raising the vapor temperature to prevent frost on the suction line
    • provide a small boost to system refrigerating capacity

    Suction Copper Heat Exchanger Features



    -1 .jpg

    Copper Heat Exchanger Specification :


    ModelCapacity
    (HP)
    Gas Connection
    (Inch)
    Liquid Connection
    (Inch)
    Length
    (Inch)
    DWP
    (Psig)
    Weight
    (Lbs)
    SLHE 1 15/8 "3/8 "13 3/4 "700 psig2 lbs
    SLHE 1 1/2 1 1/27/8 "3/8 "14 1/2 "700 psig3 lbs
    SLHE 2 21 1/8 "3/8 "15 "400 psig3 lbs
    SLHE 1/2 1/21/2 "1/4 "11 1/2 "500 psig1 lbs
    SLHE 3/4 3/45/8 "3/8 "11 3/4 "500 psig2 lbs
    SLHE 3 31 1/8 "1/2 "15 "700 psig3 lbs
    SLHE 5 51 3/8 "5/8 "14 1/4 "633 psig4 lbs
    SLHE 7 1/2 7 1/21 5/8 "5/8 "17 "633 psig4 lbs
    SLHE 10 102 1/8 "7/8 "18 "400 psig8 lbs
    SLHE 15 152 1/8 "7/8 "25 "400 psig12 lbs
    SLHE 20 202 1/8 "1 1/8 "27 "400 psig13 lbs
    SLHE 20 HP 202 1/8 "1 1/8 "30 7/8 "700 psig15 lbs
    SLHE 25 252 5/8 "1 1/8 "28 7/8 "450 psig15 lbs
    SLHE 30/35 302 5/8 "1 3/8 "28 7/8 "450 psig16 lbs
    SLHE 40 403 1/8 "1 3/8 "28 7/8 "450 psig20 lbs
    SLHE 50 503 1/8 "1 5/8 "28 7/8 "450 psig20 lbs
    SLHE 60 604 1/8 "1 5/8 "29 7/8 "450 psig44 lbs
    SLHE 75/80 754 1/8 "2 1/8 "29 7/8 "450 psig45 lbs
    SLHE 100/125 1005 1/8 "2 1/8 "30 7/8 "360 psig54 lbs
    SLHE 150 1506 1/8 "2 5/8 "30 7/8 "360 psig55 lbs
