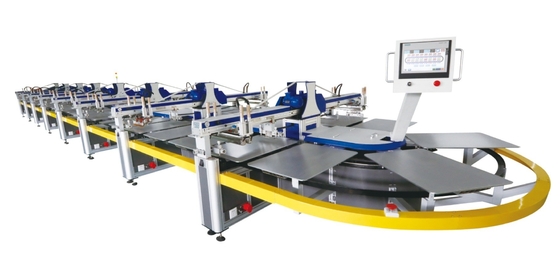

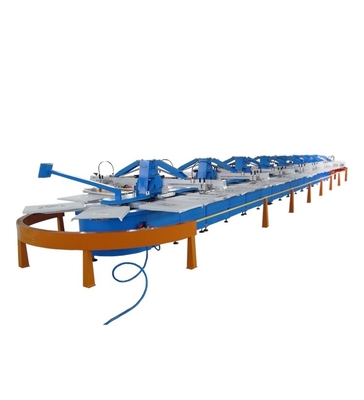

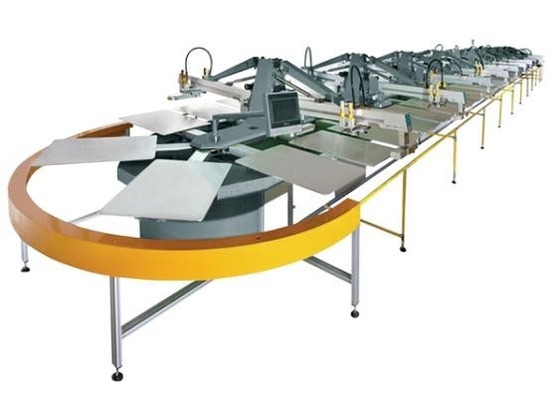

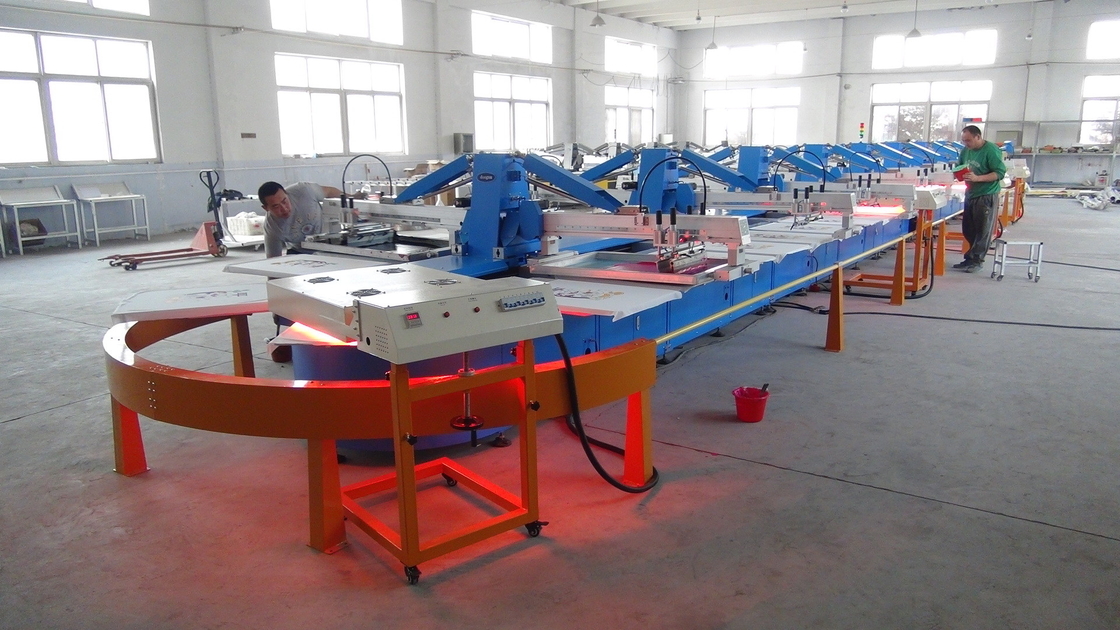

Screen Printing Oval Machine 8 Colors

Screen Printing Oval Machine 8 Colors

    • Screen Printing Oval Machine 8 Colors
    • Screen Printing Oval Machine 8 Colors
    • Screen Printing Oval Machine 8 Colors
    • Screen Printing Oval Machine 8 Colors
  • Screen Printing Oval Machine 8 Colors

    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD26000-100000/SET
    Packaging Details: WOODEN CASES
    Delivery Time: 10-15 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000SET PER YEAR
    Contact Now
    Detailed Product Description
    Color & Page: Multicolor Plate Type: Screen Printer
    Automatic Grade: Automatic Usage: Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer

    Screen Printing Oval Machine 8 Colors



    Screen Printing Oval Machine 8 ColorsScreen Printing Oval Machine 8 Colors

    Screen Printing Oval Machine 8 Colors

    Screen Printing Oval Machine 8 Colors



    Product Application

    1.High precision: advanced technology, mature and stable, the accuracy of the device set error between±0.02 mm, effectively improve the quality of printing products, improve the quality of printing products

    2.The number of printing station: using the print head - dryer- cooling arrangement, good for all kinds of ink, especially suitable for Water slurry,Mucilage,ink etc.

    3.High efficiency production: multicolor printing paste, the machinecan also be used for production lines, need only 3 people to operate machine, improve production efficiency, accelerate the recovery of capital.

    4.The operation more simple and convenient: the net frame is fixed in unique way, ensure the stability of precision, the cooling station reduce water based printing paste plug effectively, improve the production efficiency.

    5.General equipment: big and small size of the screen frame can be used, with a net frame or handprint net frame can be used, large pieces of cloth and garment printing Limited.

    6.There is no chain drive: This machine adopts unique plate transmission, not the chain transmission structure, increase the stability of the equipment and prolong the service life of the equipment.

    7.Environmental protection and low energy consumption: the screen printing machine is half the consumption equivalent printing machine, low power mobile oven, suitable for printing area.

    8.High security: the machine equip around the emergency stop switch, effectively protect the safety of the operator

    9.the frame can be adjusted upper and lower around the 15mm


    Model

    ECO-6
    ECO-8
    ECO-10
    ECO-12
    ECO-14
    ECO-16
    ECO-18
    ECO-20
    stations

    22
    28
    34
    40
    46
    52
    58
    64
    color

    6
    8
    10
    12
    14
    16
    18
    20
    Printing image
    cm
    58*73
    Frame size max.
    cm
    66*95*25
    Lenght of machine
    cm
    858
    1064
    1270
    1476
    1682
    1888
    2104
    2320
    Width of machine
    cm
    295
    Height of machine
    cm
    160
    weight
    kg
    3500
    4000
    4500
    5000
    5500
    6000
    6500
    7000
    Air consumption
    m/min
    0.2
    0.2
    0.25
    0.3
    0.35
    0.4
    0.45
    0.5
    air pressure

    0.6MPa/0.8MPa (must after drying and fliter)
    Print unit power
    w
    Servo motor of mono printing head(400w)
    electric power consumption
    kw
    4.5
    5.5
    6
    8
    9
    10
    10.5
    11.5
    Power supply

    380v 50Hz 3P
    Speed
    Pcs/h
    800

    Product Features



    1. Precision Position

    The inaccuracy of the machine is 0.02 due to advanced technology,which effectively improve the quality of the products as well as the printing pattern.



    2.Multiple Working Station

    Using the process of print head,oven and cooling,can produce various sizing agent, especially suitable for mucilage,ink,thick edition,printing,foaming,water etc.



    3. High Production

    One machine could print more than one color of sizing agents,and also use as multiple production lines.only need 3 people to operate it,strengthening production efficiency, fast investment return.



    4. Convenient Operation

    An unique style of fasten for screen frame,unique screen frame location,which do not need to take out the screen when cleaning it.easy to change screen frame.ensure the stability of precision. The cooling station effectively reduce the situation which screen is blocked by water base.



    5. Universal Machine

    The machine is suitable for various screens which are use for automatic printing and manual printing,and not limited to the printing of big size pieces and clothes.



    6. Drive without Chain

    The pallets are transfer by special method which use the structure of drive without chain,increase stability of the machine and prolong the service life of it.



    7. Environmental Protection and Low Energy Consumption

    The air consumption of this machine is equal to 50 percent of other machine,the removable oven is low energy consumption,and suitable for printing various size of pattern

    Screen Printing Oval Machine 8 Colors

    Screen Printing Oval Machine 8 Colors

    Screen Printing Oval Machine 8 Colors

    Screen Printing Oval Machine 8 Colors

    Screen Printing Oval Machine 8 Colors

    FAQ:
    Q: Are you a factory or a trading company?
    A: We are factory manufacturing printing machines and we provide perfect OEM and after-sale service.
    Q: Can you send me the video to show how the machine works?
    A: Certainly, we have made video of every machine and uploaded them to Youtube.
    Q: What should I take care when using the machine?
    A: Keep the machine away from thinner and other chemical liquid.
    Q: How to maintain the machine?
    A: Check the connection part amd clean the screen frame regularly.
    Q: How can I pay my order?
    A: We accept T/T, Trade Insurance and western union.
