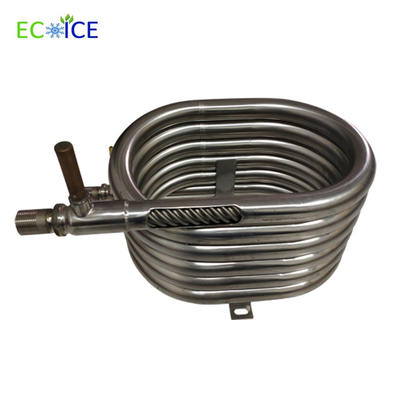

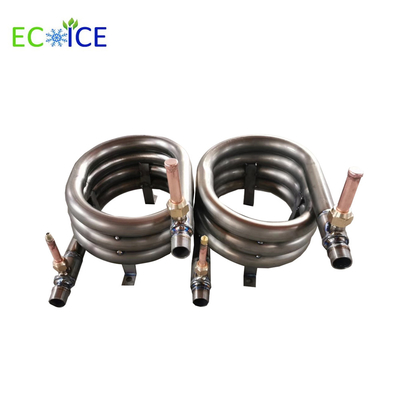

Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    • Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw
    • Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw
    • Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw
    • Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw
    • Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw
  • Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECOB-5.0
    Liquid Flow Rate: 8.6m3/H
    Maximum Working Pressure: 4.5MPa
    Voltage: 220V/380V
    Heating Capacity: 20.0kw
    Warranty: 24month
    Material: Titanium Tube

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pc
    Price: usd50-500/pc
    Packaging Details: cartons+pallet
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500000PCS Per Year
    Contact Now
    Detailed Product Description
    Material: Copper Structure: Tube Heat Exchanger
    Practical Application:: Heating/cooling

    Coxial Tube Heat Exchanger

    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 KwAnti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 KwAnti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Liquid Flow Rate 2.09-100m3/h
    Maximum Working Pressure Refer to details
    Weight 1-100KGS
    Warranty 1 Year
    After-sales Service Provided Field installation, commissioning and training
    Applicable Industries Manufacturing Plant
    Condition New
    Place of Origin Foshan, China (Mainland)
    Brand Name ECOICE
    Structure Tube Heat Exchanger
    Voltage 110V/220V/380V
    Dimension(L*W*H) 880*450*50mm
    Certification CCC, CE, ROHS, UL
    Material Pure titanium tube
    Application Heat exchanger
    Type New energy


    Structure Feature

    High efficiency

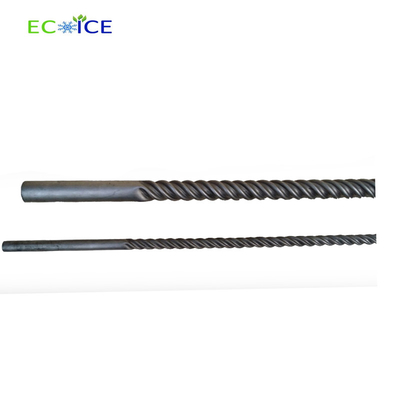

    Spiral groove structure can enhance heat transfer on both sides. The axial flow and spiral rotation flow of the fluid in the tube will intensify the mixing of the fluid near the tube wall, thus enhancing the turbulence intensity and increasing the heat transfer coefficient

    Self-cleaning ability
    The coaxial heat exchanger has self-cleaning ability because the fluid spiral flow washes the surface. Coaxial heat exchanger has stable performance and low attenuation. The cross-section area of the waterway is large, allowing sediment and large diameter fibers to pass through without blocking. The water passage is clean because the inner tube of the spiral groove keeps the flow turbulent and cleans the surface

    Effective prevention of freezing
    Water is not easy to freeze because it is turbulent when it flows at a low speed in a spiral groove. The special spiral groove structure of the inner tube makes the inner tube flexible to a certain extent and does not produce the risk of frost cracking.

    Less risk of leakage
    Heat exchangers are very worried about leakage due to long-term vibration, pressure fluctuation, alternation of heat and cold, and so on. The risk of leakage of coaxial exchangers is seldom due to fewer welding points, simple processing and easy control of welding quality

    Adapt to all kinds working conditions
    In the actual operation of refrigeration system, the internal pressure is often in an alternate state due to temperature fluctuation, start-stop cycle, heat pump defrosting, expansion valve regulation and other factors. Spiral coaxial heat exchanger is more resistant to pressure shock and pressure shock than plate heat exchanger under constant vibration and pressure change, and can adapt to the complexity of actual working conditions

    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Kinds of coaxial heat exchanger that ECOICE design and produce

    1 Based on shape

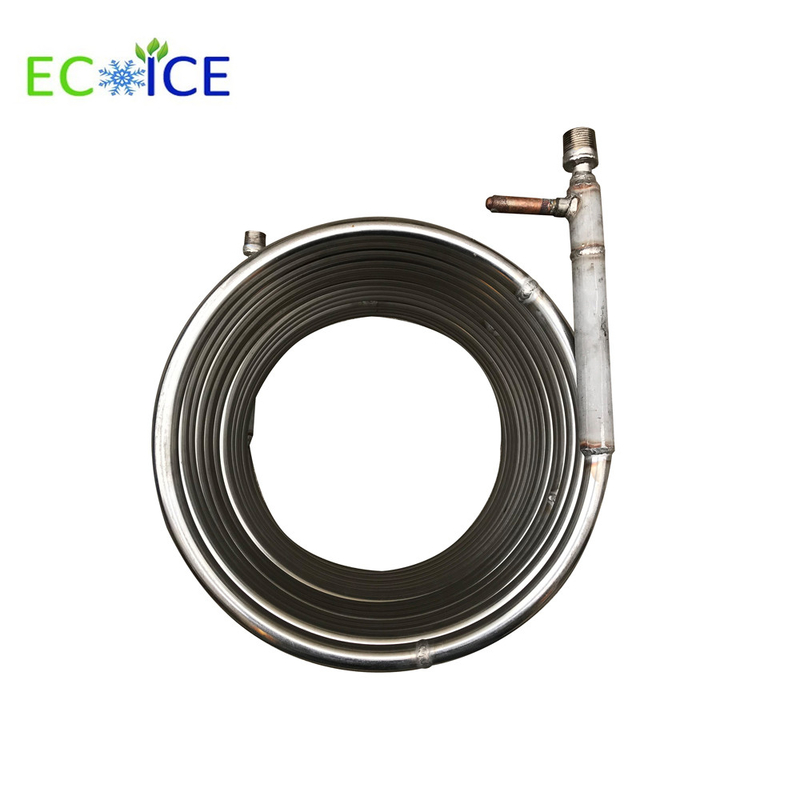

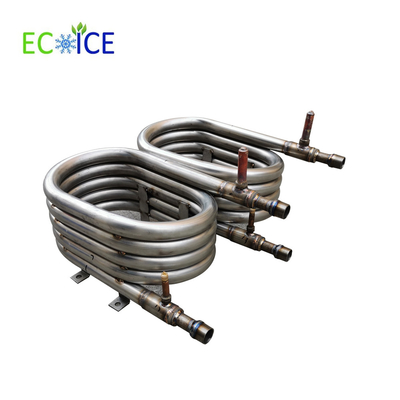

    Circle ,Rectangle,Double helix,Spiral,Trombone

    2 Based on system No.
    Single system,Double helix type 3 systems,Trombone interspersed 2 systems,Trombone type 6 systems,Spiral type 9 systems

    3 Based on material
    Red copper,Cupronickel (BFe-10-1-1),Titanium,Stainless steel,Steel

    Inner tube material
    Inner tube material can be: red copper, cupronickel(BFe-10-1-1), Titanium, Stainless steel. And inner tube can be choosed by smooth tube or enhanced surface tube. And there are also double-wall copper inner tube.

    Outer tube material
    Depending different working condition, outer tube material can be: steel, red copper, cupro-nickel, titanium, stainless steel etc.



    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 KwAnti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Coaxial heat exchangers with excellent ability for heat exchanging and adaptation are widely used for:

    1. Heat pump water heater condenser
    2. Condenser/evaporator for water chiller
    3. Condenser for pool heat pump
    4. Condenser/evaporator for water(ground) source heat pump
    5. Cooler or regenerator for CO2 heat pump air
    6. Condenser/evaporator for marine AC
    7. Condenser for ice machine
    8. Evaporator for water purifier
    9. Evaporation or condenser for mariculture constant temperature machine
    10. Condenser for dish washer


    Anti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 KwAnti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 KwAnti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw

    Any inquiry or question, feel free to contact usAnti-Refrigerent Leaking Double Wall Heat Exchanger of Copper Pipe Evaporator of Exchanger 10 Kw
