Product Details:
Payment & Shipping Terms:
|
Cooling Mode: | Air Cooling | Power Supply: | 3P / 380V /50HZ |
---|---|---|---|
Refrigerant: | R404 | Ambient Temp: | 25 Degree |

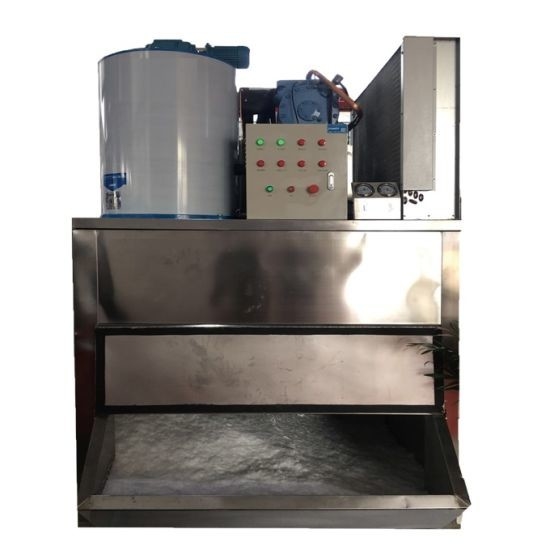

3Ton Fresh water Flake ice machine for fish cooling
Technical Data As Below :
1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
2. Evaporating Temp : -20 ºC ;
3. Condensing Temp : 40 ºC ;
4. Power supply: 3P/380V/50HZ
5. Flake ice thickness:1.6-2.3 mm
6. Refrigerant gas type : R404A
Detailed Specification of Ice Flake Machine as below :
Model | ECO0.3T-R4A | ECO0.5T-R4A | ECO1T-R4A | ECO1.2T-R4A | ECO1.5T-R4A | ECO2T-R4A | ECO2.5T-R4A | ECO3T-R4A |
Cooling Capacity | 2KW | 3.3KW | 5.6KW | 6.6KW | 9.8KW | 11.6KW | 15.5 KW | 17.2KW |
General Power | 1.95KW | 2.49KW | 4.22KW | 4.72KW | 6.75KW | 8.11KW | 9.75KW | 10.88KW |
Compressor Input | 1.59KW | 2.2KW | 3.8KW | 4.3KW | 6.33KW | 7.2KW | 8.83KW | 9.97KW |
Reductor Power | 0.25KW | 0.18KW | 0.18KW | 0.18KW | 0.18KW | 0.37KW | 0.37KW | 0.37KW |
Cooling Mode |
Air
Cooling
|
Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Weight | 190KG | 300KG | 450KG | 460KG | 480KG | 500KG | 550KG | 600KG |
DImension(mm) | 1050*700*700 | 1280*800*800 | 1320*900*900 | 1320*900*900 | 1400*9500*1000 | 1500*1100*1200 | 1500*1100*1200 | 1700*1200*1320 |
With ice bin | 1050*800*1480 | 1280*1085*1850 | 1320*1185*2100 | 1320*1185*2100 | 1500*1420*2300 | 1735*1420*2500 | 1735*1520*2840 | 1875*1520*3050 |

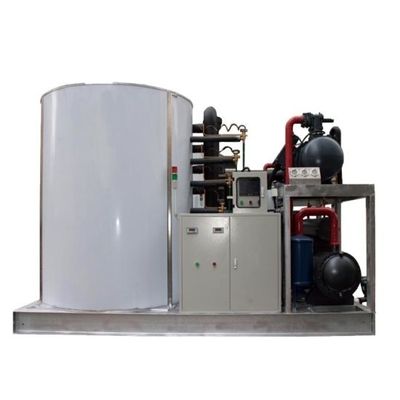

Model | ECO5T-R4W | ECO8T-R4W | ECO10T-R4W | ECO12T-R4W |
Daily Output (Ton/24Hrs) | 5 | 8 | 10 | 12 |
Cooling Capacity (KW) | 38.7 | 54.1 | 76.5 | 83.3 |
General Power (KW) | 22.55 | 33 | 45.5 | 45.6 |
Compressor Input (KW) | 20.5 | 27.1 | 40.7 | 47.5 |
Reductor Power(kw) | 0.37 | 0.55 | 0.55 | 0.55 |
Cooling Mode | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
Cooling Tower(m3/h) | 20 | 30 | 45 | 50 |
Water Inlet/Drain Pipe | 3/4",1/2" | 3/4",1/2" | 3/4",1/2" | 3/4",1/2" |
Weight (kgs) | 980 | 1670 | 2020 | 2260 |
Dimension(mm) | 1800*1500*1470 | 2200*1890*1650 | 2200*1900*1750 | 2200*1900*1900 |
** : We also could follow client detailed requirement to assemble correct machine .
Our flake ice machines have different model, with the daily capacity from 300kg ~ 30000kg every day, it can meet different customers' ice demand.
1.ECOIE Ice Evaporator use the intelligent design, it is stable,efficient energy and maintain easily.
2.Ice Evaporators are made by SUS304 stainless steel or Chromed-carbon steel,internal spiral groove design,V groove welding technology,
it saves 5%~8% energy more than the same type of energy-saving equipment industry
3.Ice Evaporators are processed by high temperature annealing,eliminate the internal stress of steel,
the equipment doesn’t distorted to work for long term under low temperature and low pressure.
4.the inner of evaporators is paint handling,so that the flow channel welds permanent styling and never produce Refrigerant leak.
5.Parts of refrigeration unit are from the world famous brand.
Main Parts of Flake Ice Machine :
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
