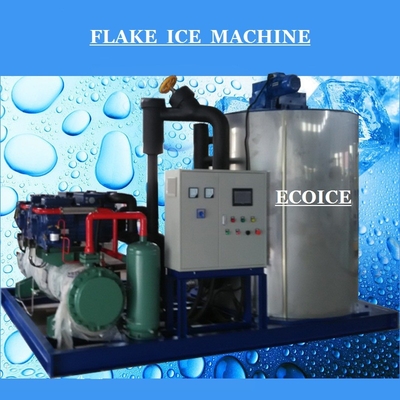

5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine

5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine

    • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
    • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
    • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
    • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
    • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
    • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
  • 5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine

    Product Details:

    Place of Origin: China
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO5T-R4SW
    Item: 5 Tons Fishery Cooling Seawater Flake Ice Making Machine
    Daily Ice Output: 5Ton / 24Hrs
    Cooling capacity: 31.60kw
    Compressor Input: 20.4kw
    Reductor Power: 0.37kw
    Water Inlet / Drain Pipe: 1/2"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: usd13500-59990/set
    Packaging Details: woodencases
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000set per year
    Contact Now
    Detailed Product Description
    Power Supply: 3P / 380V /50HZ Cooling Mode: Seawater Cooling
    Refrigerant Type: R404A



    5Tons Fishery Cooling Seawater Flake Ice Making Machine



    Technical Data As Below :
    1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
    2. Evaporating Temp : -20 ºC ;
    3. Condensing Temp : 38 ºC ;
    4. Power supply: 3P/380V/50HZ
    5. Flake ice thickness:1.6-2.3 mm
    6. Refrigerant gas type : R404a

    Detailed Specification of Seawater Ice Flake Machine as below :



    Model ECO1T-R4SW ECO2T-R4SW ECO3T-R4SW ECO5T-R4SW
    Daily Output (Ton/24Hrs) 1 2 3 5
    Cooling Capacity (KW) 6.7 12.2 19 31.6
    General Power (KW) 5.25 8.91 12.24 22.39
    Compressor Input (KW) 4.38 7.67 11 20.4
    Reductor Power(kw) 0.37 0.37 0.37 0.37
    Cooling Mode Water Cooling Water Cooling Water Cooling Water Cooling
    Water Inlet/Drain Pipe 1/2" 1/2" 1/2" 1/2"
    Weight (kgs) 500 600 650 1050
    Dimension(mm) 1320*950*1000 1500*1200*1300 1500*1200*1350 1800*1500*1560


    ** : We also could follow client detailed requirement to assemble correct machine .



    Flake Ice Machine Accessory



    Compressor
    China
    Expansion valve
    United States
    Evaporator
    China
    Gas-liquid separator
    China
    Shock absorber
    Korea
    Pressure controller
    Denmark
    Oil separator
    United States
    Reducer
    China
    Condenser
    China
    Pump
    China
    Cooling Tower
    China
    Water level switch
    China
    Cooling water pump
    China
    PLC controller
    Korea
    Reservoir
    China
    Air switch
    Korea
    Drying filter
    Denmark
    Contactor
    Korea
    The electromagnetic valve
    Denmark
    Thermal relay
    Korea

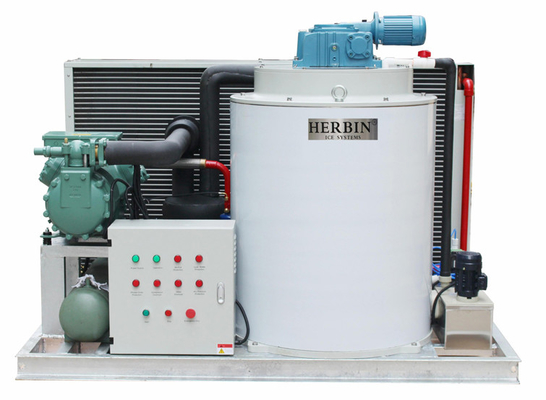

    Main Parts of Flake Ice Machine :

    5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine



    Our factory of ice flake machines :



    5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine

    5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine

    5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine



    5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine





    With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...

    We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.



    5 Tons Fishery Water Cooling Seawater Flake Ice Making Machine
