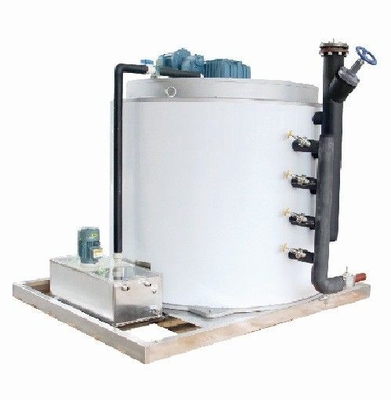

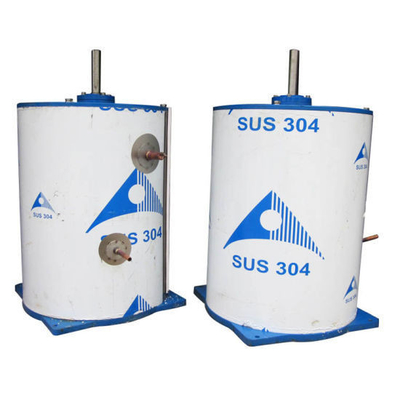

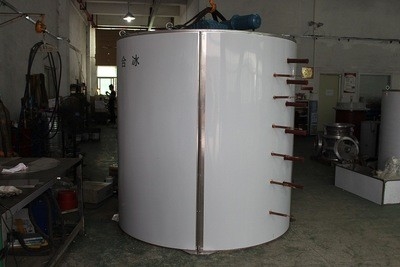

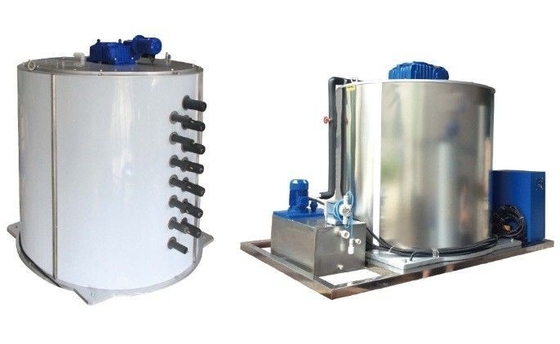

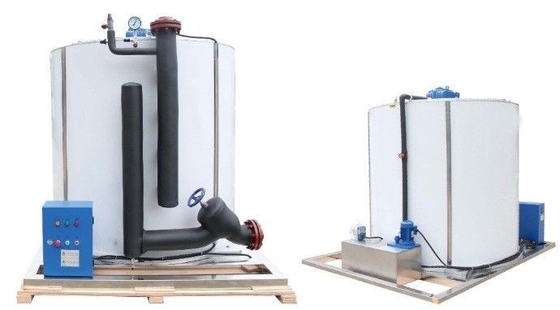

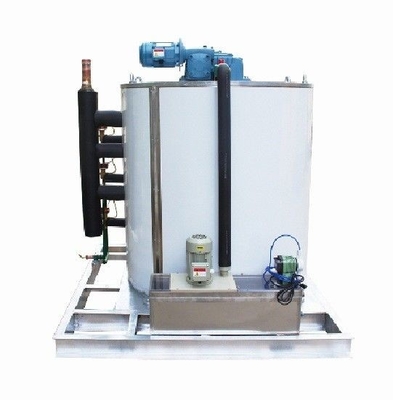

1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator

1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator

    • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
    • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
    • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
    • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
    • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
    • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
  • 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator

    Product Details:

    Place of Origin: China
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO-1T
    Item: 1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
    Ice Shape: Flake Ice
    Application: Supermarket
    Cooling Method: Direct Cooling
    Ice Making: Flowing
    Cooling Way: Air Cooled
    Ice Temperature: -5℃~-10℃

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: usd5000-10000/pc
    Packaging Details: wooden cases
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 5000pc per month
    Contact Now
    Detailed Product Description
    Cooling Way: Air Cooled Ice Temperature: -5℃~-10℃
    Water Temp.: 2℃~35℃

    1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator :


    As the key part of the complete flake ice machine, the ice flaker evaporator plays important role in making ice. To match the various Ice flaker evaporators, you can make different choice about the refrigeration units in different refrigerant (R22, R404A or R717) by yourselves before place the order, let me know which refrigerant you'll choose.

    Characteristics:


    ---The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.
    ---Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.
    ---All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.
    ---The flake ice is glittering and translucent, hard and pure
    ---Ice making and dropping in high speed.





    Commercial Range Ice Flaker Evaporator Specification :



    Model ECO-1T ECO-1.5T ECO-2T ECO-2.5T ECO-3T ECO-5T
    Daily Output(Ton/24Hrs) 1 1.5 2 2.5 3 5
    Necessary Refrigeration Capacity (KW) 6 9.8 12 15.5 18 30
    Voltage 380V/50HZ/3P
    Reductor Power 0.18 0.18 0.37 0.37 0.37 0.37
    Water Inlet / Drain Pipe 1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
    Dimension (mm) 790*580*900 790*580*1000 900*680*1050 950*680*1100 950*680*1200 1180*1050*1420
    Weight (kgs) 160 200 240 260 280 370





    1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator

    1Ton Fishing Boat, Seafood Cold Storage Flake Ice Machine Evaporator
