Place of Origin: | China |
Brand Name: | ECOICE |
Certification: | CE |
Model Number: | ECO-2.5T |
Item: | Factory Supply Ecoice 2.5ton Flake Ice Machine Part Evaporator |
---|---|
Ice Shape: | Flake Ice |
Application: | Supermarket |
Cooling Method: | Direct Cooling |
Ice Making: | Flowing |
Minimum Order Quantity: | 1pc |
---|---|
Price: | usd5000-10000/pc |
Packaging Details: | wooden cases |
Delivery Time: | 10-15 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000pc per month |
Cooling Way: | Air Cooled | Ice Temperature: | -5℃~-10℃ |
---|---|---|---|
Water Temp.: | 2℃~35℃ |

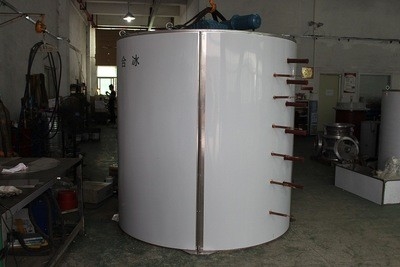

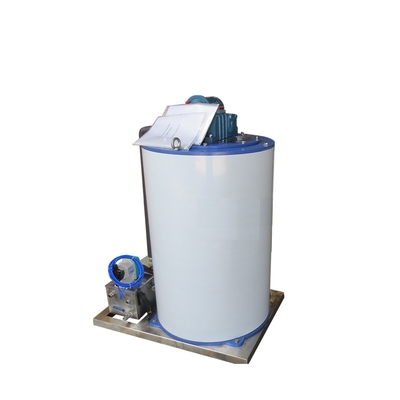

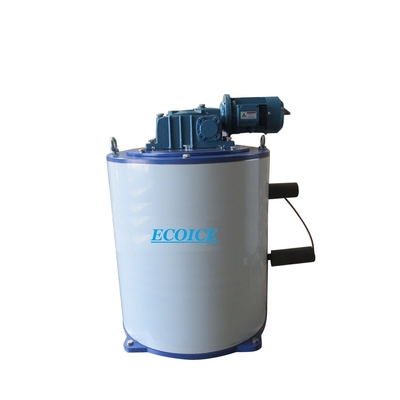

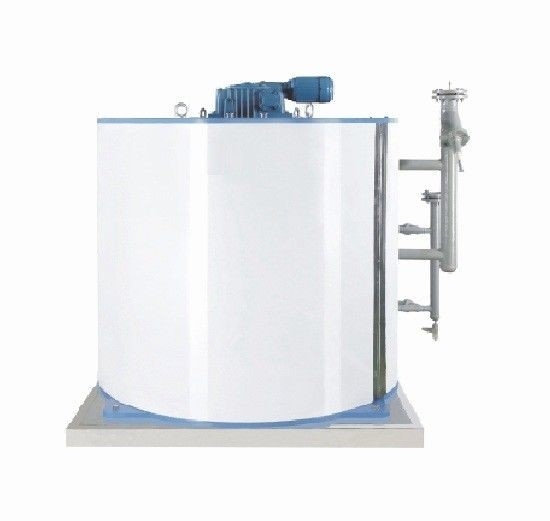

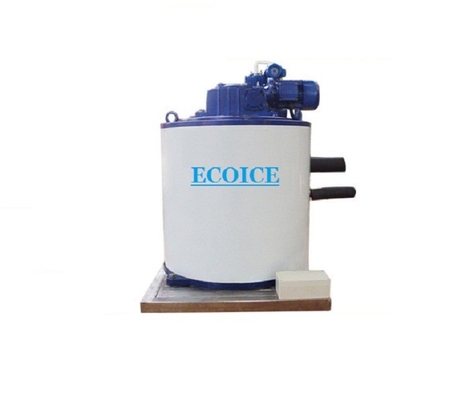

Ecoice 2.5ton Evaporator for Ice Flake Machine :
As the key part of the complete flake ice machine, the ice flaker evaporator plays important role in making ice. To match the various Ice flaker evaporators, you can make different choice about the refrigeration units in different refrigerant (R22, R404A or R717) by yourselves before place the order, let me know which refrigerant you'll choose.
Characteristics:
---The ice flaker evaporator processed from special alloy with lightness and high heat conduction efficient approximating that of Aluminum.
---Every flake ice scraper processed in special designing without any jointing then in high solidity and can rotate well nearly 8 years.
---All components selected is of top-quality and meet configuration need, which makes the evaporator hold less space, and achieve best performance.
---The flake ice is glittering and translucent, hard and pure
---Ice making and dropping in high speed.
Commercial Range Ice Flaker Evaporator Specification :
Model | ECO-1T | ECO-1.5T | ECO-2T | ECO-2.5T | ECO-3T | ECO-5T |
Daily Output(Ton/24Hrs) | 1 | 1.5 | 2 | 2.5 | 3 | 5 |
Necessary Refrigeration Capacity (KW) | 6 | 9.8 | 12 | 15.5 | 18 | 30 |
Voltage | 380V/50HZ/3P | |||||
Reductor Power | 0.18 | 0.18 | 0.37 | 0.37 | 0.37 | 0.37 |
Water Inlet / Drain Pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
Dimension (mm) | 790*580*900 | 790*580*1000 | 900*680*1050 | 950*680*1100 | 950*680*1200 | 1180*1050*1420 |
Weight (kgs) | 160 | 200 | 240 | 260 | 280 | 370 |
Contact Person: Mr. Derek
Tel: 18653159672
