8 loops 304 Stainless Steel radiant underfloor heating manifolds

8 loops 304 Stainless Steel radiant underfloor heating manifolds

    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
    • 8 loops 304 Stainless Steel radiant underfloor heating manifolds
  • 8 loops 304 Stainless Steel radiant underfloor heating manifolds

    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PC
    Price: USD50-200/PC
    Packaging Details: WOODEN CASES
    Delivery Time: 10-15 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500000 PC PER MONTH
    Contact Now
    Detailed Product Description
    Material: 100% 304 Stainless Steel Guranteed Type: Floor Heating Systems
    Application: Underfloor Heating System

    8 loops 304 Stainless Steel radiant underfloor heating manifolds



    8 loops 304 Stainless Steel radiant underfloor heating manifolds8 loops 304 Stainless Steel radiant underfloor heating manifolds

    8 loops 304 Stainless Steel radiant underfloor heating manifolds



    304 Stainless Steel Floor Heating Manifolds for floor heating system usage

    Detailed specification

    Model no: HL-303-N3
    Main tube size: 1" F G
    No. of circuits: 2--13 circuits
    Hole distance: 60mm
    Flow meter rate: 0--5 L/m.
    Connectors: for 16*2.0mm or 20*2.0mm pipes
    Brackets: 200mm or 210mm
    Application for actuator: M30*1.5mm
    Working pressure: 1.0 Mpa



    Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.

    Delivery:

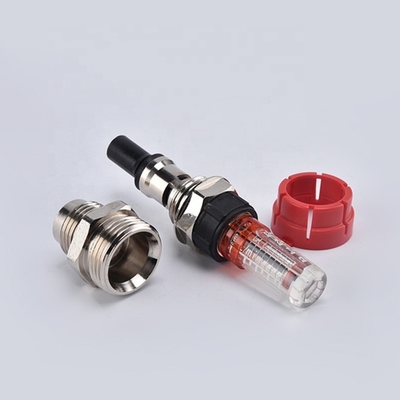

    2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min

    2-12pcs connecting fittings 3/4" with euro-cone



    1 pcs special plug 1" on primary side

    1 pcs female thread 1" on primary side



    Return:

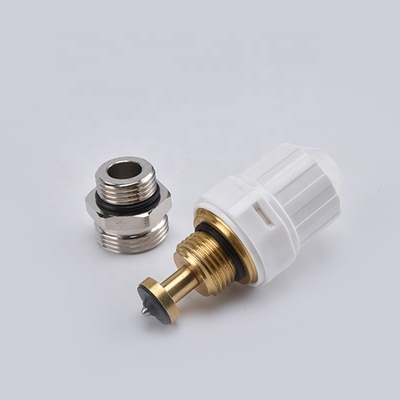

    1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)

    2-12pcs connecting fittings 3/4" with euro-cone



    1 pcs special plug 1" on primary side

    1 pcs female thread 1" on primary side



    1 pair Mounting brackets: 210mm or 200mm centering according to customers' request.



    Pressure tested according to DIN 3230, packed in cardbox

    (manifold branches assembled)



    8 loops 304 Stainless Steel radiant underfloor heating manifolds

    8 loops 304 Stainless Steel radiant underfloor heating manifolds



    8 loops 304 Stainless Steel radiant underfloor heating manifolds

    8 loops 304 Stainless Steel radiant underfloor heating manifolds

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.


    Q: How long is your delivery time?

    A: Generally it is 5-15 days if the goods are in stock. If the goods are not in stock, it is according to quantity.


    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


    Q: What is your terms of payment ?

    A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us directly.
