Home ProductsStainless Steel Underfloor Heating Manifold Bar

Stainless Steel ground heating water segregator

Stainless Steel ground heating water segregator

    • Stainless Steel ground heating water segregator
    • Stainless Steel ground heating water segregator
    • Stainless Steel ground heating water segregator
    • Stainless Steel ground heating water segregator
    • Stainless Steel ground heating water segregator
  • Stainless Steel ground heating water segregator

    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PC
    Price: USD50-200/PC
    Packaging Details: WOODEN CASES
    Delivery Time: 10-15 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500000 PC PER MONTH
    Contact Now
    Detailed Product Description
    Material: 100% 304 Stainless Steel Guranteed Type: Floor Heating Systems
    Application: Underfloor Heating System

    Stainless Steel ground heating water segregator

    Stainless Steel ground heating water segregatorStainless Steel ground heating water segregator

    Stainless Steel ground heating water segregator

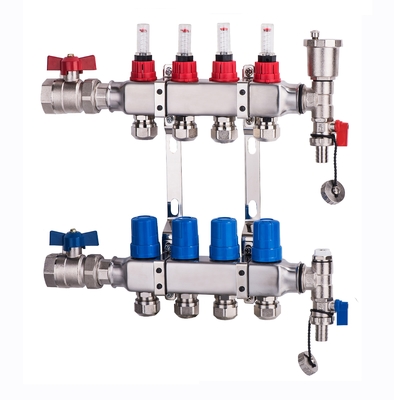

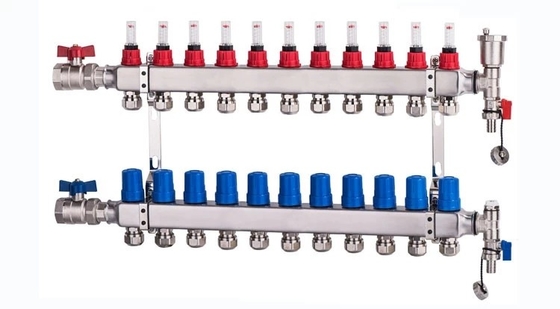

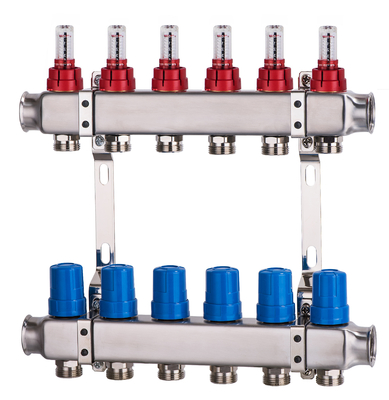

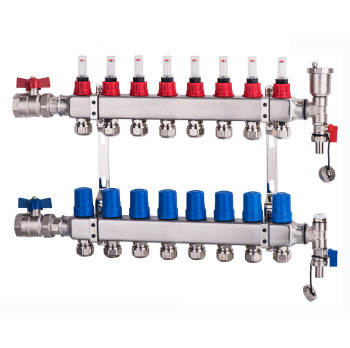

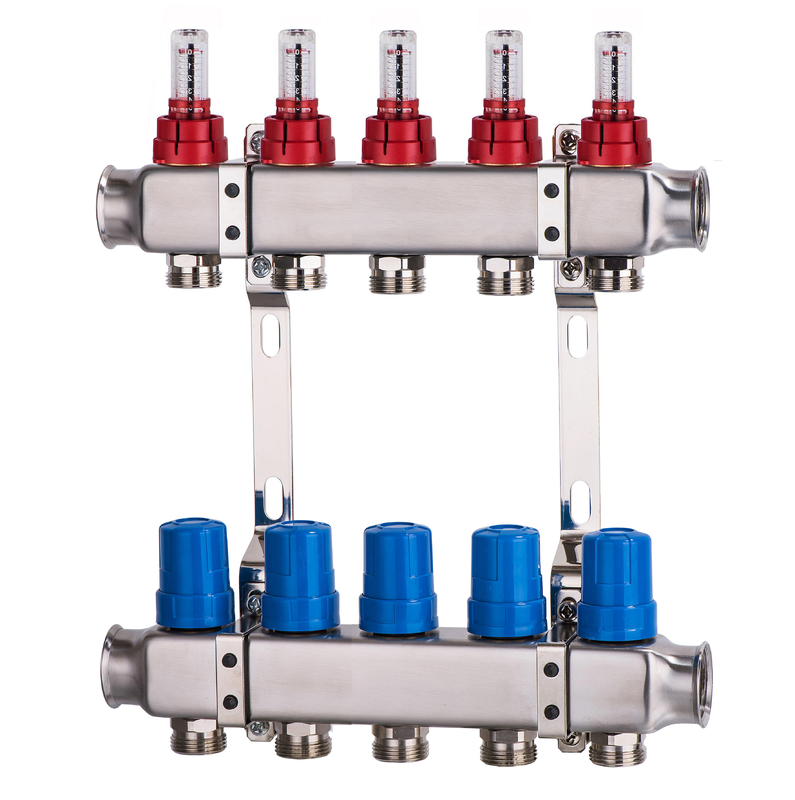

    304 Stainless Steel Floor Heating Manifolds for floor heating system usage

    Detailed specification

    Model no: HL-303-N3
    Main tube size: 1" F G
    No. of circuits: 2--13 circuits
    Hole distance: 60mm
    Flow meter rate: 0--5 L/m.
    Connectors: for 16*2.0mm or 20*2.0mm pipes
    Brackets: 200mm or 210mm
    Application for actuator: M30*1.5mm
    Working pressure: 1.0 Mpa



    Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.

    Delivery:

    2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min

    2-12pcs connecting fittings 3/4" with euro-cone



    1 pcs special plug 1" on primary side

    1 pcs female thread 1" on primary side



    Return:

    1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)

    2-12pcs connecting fittings 3/4" with euro-cone



    1 pcs special plug 1" on primary side

    1 pcs female thread 1" on primary side



    1 pair Mounting brackets: 210mm or 200mm centering according to customers' request.



    Pressure tested according to DIN 3230, packed in cardbox

    (manifold branches assembled)



    Stainless Steel ground heating water segregator

    Stainless Steel ground heating water segregator



    Stainless Steel ground heating water segregator

    Stainless Steel ground heating water segregator

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are factory.


    Q: How long is your delivery time?

    A: Generally it is 5-15 days if the goods are in stock. If the goods are not in stock, it is according to quantity.


    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


    Q: What is your terms of payment ?

    A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
    If you have another question, pls feel free to contact us directly.
