Name: 304 Stainless Steel Manifold Bars for Underfloor Heating System
Brand: SHANDONG ECOICE REFRIGERATION CO.,LTD
SKU: ECO2H
Price: 16.00 USD
Availability: InStock

Home Products Stainless Steel Underfloor Heating Manifold Bar

304 Stainless Steel Manifold Bars for Underfloor Heating System

Product Details:

Place of Origin:	CHINA
Brand Name:	ECOICE
Certification:	CE
Model Number:	ECO2H
Material:	Stainless Steel 304
Application:	Underfloor Heating System
Thickness:	1.5mm(standard)

Payment & Shipping Terms:

Minimum Order Quantity:	100 pc
Price:	usd 2-30/pc
Packaging Details:	cartons+pallet
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500000pc per month

Contact Now

Detailed Product Description

Hole:	2-13	Holes:2--13:	DN:15,20,25MM

304 Stainless Steel Manifold Bars for Underfloor Heating System

304 Stainless Steel Manifold Bars for Underfloor Heating System

Product Name

stainless steel manifold
Material	brass
Surface dealing	Polished or brushed
Size	1" * 2-13 loops
Package	Standard export package or Customized
Testing Pressure	0.8 Mpa, 100% testing
Thread	G, BSP, NPT
Used	building construction, floor heating system

Main Features

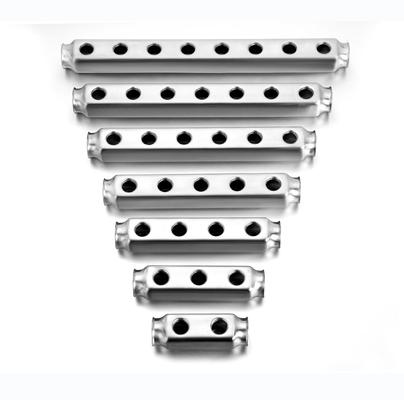

1) Number of branch lines: 2 to 13
2) Maximum working temperature: 95°C
3) Maximum working pressure: 1.25MPa
4) Branch distance: 50/55mm
5) Main pipe height: 40.7/47mm
6) Main pipe length: 125 to 735mm
7) Plate length: 135 to 575mm
8)Valve size: Ø12 to 16 and 16 to 20mm
9) Both ends of the caliber: G-1/G1-1/4 inches
10) Branch caliber: G-3/8/G-1/2 inches

304 Stainless Steel Manifold Bars for Underfloor Heating System

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-15 days if the goods are in stock. If the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us directly.
