316L stainless steel shell pipe heat exchanger

316L stainless steel shell pipe heat exchanger

    • 316L stainless steel shell pipe heat exchanger
    • 316L stainless steel shell pipe heat exchanger
    • 316L stainless steel shell pipe heat exchanger
    • 316L stainless steel shell pipe heat exchanger
    • 316L stainless steel shell pipe heat exchanger
  • 316L stainless steel shell pipe heat exchanger

    Product Details:

    Place of Origin: china
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO300K
    Shell and Tube Heat Exchanger Size: 450*76mm
    Shell and Tube Heat Exchanger Capacity: 45kw
    Shell and Tube Heat Exchanger Heat Area: 0.33 Sqm
    Item: Tube & Shell Heat Exchanger

    Payment & Shipping Terms:

    Minimum Order Quantity: 50
    Price: usd80-500/pc
    Packaging Details: carton+pallets
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 50000PCS Per month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Structure: Tube Heat Exchanger
    Practical Application: Swiming Pool Heating Voltage: 220V-380V 50HZ

    stainless steel 316L Tube Heat Exchanger



    316L stainless steel shell pipe heat exchanger

    316L stainless steel shell pipe heat exchanger

    With high heat transferring efficient heat exchanger tubes and smooth shell, it ensures high velocities inside of the unit making the heat exchanger a very reliable, efficient and cost effective way to transfer heat indirectly between any boiler/solar water heater or heat pump water heater circuit and any pool or spa circuit, besides other applications.

    Features:

    1. High heating efficiency for pool heating, big flow volume, compactable, easy installation and durable.
    2. Max design temperature:208°C
    3. Max. working pressure:1.3Mpa
    4. Material: All stainless steel 316L,Titanium or according of customer's requirement
    5. Warranty period:5 years

    Advantages:

    1. High efficiency,coefficient up to 10000 W/m2•°C,Heat exchanging capacity 3-7 times traditional equipments.
    2. Compact configure, occupy small area,one tenth as the traditional equipments
    3. Titanium material, endure high temperature, pressure and corruption.

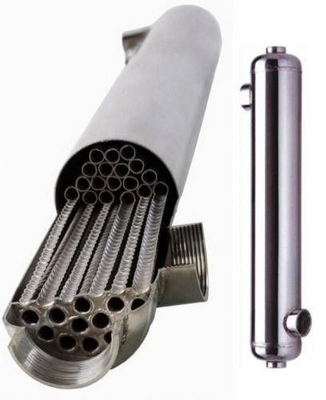

    4. Helix screw thread elasticity heat exchange bundle, eliminate the stress
    5. Design flux speed is 5.5m/s, less dirt.
    6. ASME standard VIII-1
    7. Easy clean and maintain
    8. Big flow volume
    9. Compactable
    10. Easy installation and durable

    Specification of stainless stell shell and tube heat exchanger for swimming pool :


    Model A (mm) B(mm) C E
    ECO-55K 60 360 3/4" 1"
    ECO-85K 60 520 3/4" 1"
    ECO-155K 76 450 1" 1-1/2"
    ECO-210K 76 570 1-1/2" 1-1/2"
    ECO-300K 76 780 1-1/2" 2"
    ECO-360K 89 830 1-1/2" 2"
    ECO-600K 114 900 2" 2-1/2"
    ECO-1200K 133 900 2" 2-1/2"
    ECO-2400K 168 950 2" 4"
    ECO-3000K 168 1100 2-1/2" 4"
    ECO-3600K 168 1300 2-1/2" 4"
    ECO-4500K 219 1070 2-1/2" 4"
    ECO-5000K 219 1120 2-1/2" 4"
    ECO-6000K 219 1220 2-1/2" 4"

    316L stainless steel shell pipe heat exchanger

    Model No. Normal Capacity Pool Capacity Heat Transfer Area
    KW Kbtu/hr Gallons@1oF/hr Literes@1o C/hr m2
    ECO-55K 16 55 4700 32021 0.15
    ECO-85K 25 85 7300 49735 0.25
    ECO-155K 45 155 13300 90613 0.33
    ECO-210K 61 210 18000 122634 0.44
    ECO-300K 88 300 25800 175776 0.64
    ECO-360K 105 360 31500 21460 0.85
    ECO-600K 175 600 52500 357684 1.55
    ECO-1200K 352 1200 105600 719455 2.01
    ECO-2400K 704 2400 211200 1438910 4.47
    ECO-3000K 880 3000 264000 1798638 5.30
    ECO-3600K 1056 3600 316800 2158365 6.42
    ECO-4500K 1320 4500 396000 2697956 8.46
    ECO-5000K 1467 5000 439000 3000000 8.87
    ECO-6000K 1760 6000 526800 3600000 10.64

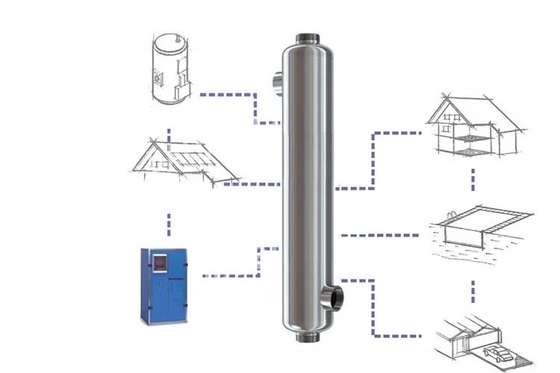

    Application : 1.Typica:l residential apply to

    In-floor heating,

    Swimming pools, spas heating,

    Domestic hot water heating,

    outdoor wood furnances ,

    hot tube heating

    Driveway snowmelts

    2.Typical industrial apply to:

    Oil cooler or heating,

    Steam condenser,

    District/central heating,

    Transmission and engine cooler,

    Boiler sample cooler,

    Waste water heat recovery,

    Industry process



    316L stainless steel shell pipe heat exchanger

    316L stainless steel shell pipe heat exchanger
