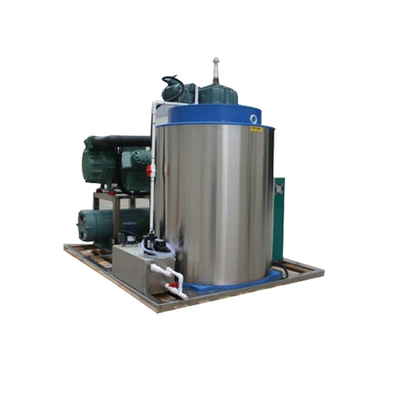

30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing

30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing

    • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
    • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
    • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
    • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
    • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
    • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
  • 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing

    Product Details:

    Place of Origin: China
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO30T-R2W
    Item: 30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
    Daily Ice Output: 30Ton / 24Hrs
    Cooling capacity: 181kw
    Compressor Input: 78.60kw
    Reductor Power: 0.75kw
    Water Inlet / Drain Pipe: 2*3/4" ,1/2"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 50000 set per year
    Packaging Details: wooden cases
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: usd13500-59000/set
    Contact Now
    Detailed Product Description
    Power Supply: 3P / 380V /50HZ Cooling Mode: Water Cooling
    Refrigerant Type: R22

    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing



    Ice Flake Machine used for meat processing , aquatic food , leather processing , mines , dye chemical industry , concrete construction ......




    Technical Data As Below :
    1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
    2. Evaporating Temp : -20 ºC ;
    3. Condensing Temp : 38 ºC ;
    4. Power supply: 3P/380V/50HZ
    5. Flake ice thickness:1.6-2.3 mm
    6. Refrigerant gas type : R22



    Detailed Specification of Ice Flake Machine as below :



    Detailed Specification of Ice Flake Machine as below :

    Model ECO15T-R2W ECO20T-R2W ECO25T-R2W ECO30T-R2W
    Daily Output (Ton/24Hrs) 15 20 25 30
    Cooling Capacity (KW) 101.5 131.40 164.50 181
    General Power (KW) 54 64.5 81 90.1
    Compressor Input (KW) 45.6 55.9 70.6 78.60
    Reductor Power(kw) 0.75 0.75 0.75 0.75
    Cooling Mode Water Cooling Water Cooling Water Cooling Water Cooling
    Cooling Tower(m3/h) 60 70 78 95
    Water Inlet/Drain Pipe 2*3/4",1/2" 2*3/4",1/2" 2*3/4",1/2" 2*3/4",1/2"
    Weight (kgs) 3850 4400 4950 5400
    Dimension(mm) 2200*1900*2200 3500*2100*2200 3500*2100*2500 4000*2100*2500



    ** : We also could follow client detailed requirement to assemble correct machine .



    Flake Ice Machine Accessory



    Compressor
    China
    Expansion valve
    United States
    Evaporator
    China
    Gas-liquid separator
    China
    Shock absorber
    Korea
    Pressure controller
    Denmark
    Oil separator
    United States
    Reducer
    China
    Condenser
    China
    Pump
    China
    Cooling Tower
    China
    Water level switch
    China
    Cooling water pump
    China
    PLC controller
    Korea
    Reservoir
    China
    Air switch
    Korea
    Drying filter
    Denmark
    Contactor
    Korea
    The electromagnetic valve
    Denmark
    Thermal relay
    Korea

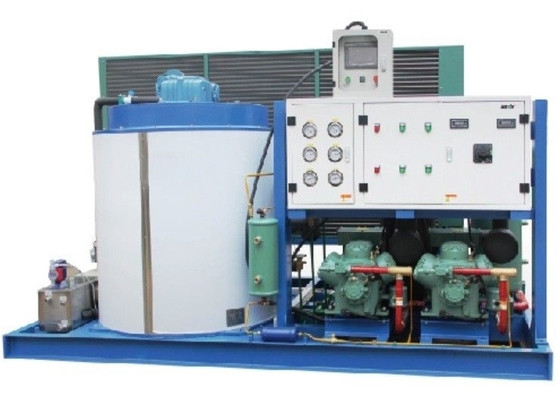

    Main Parts of Flake Ice Machine :

    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing



    Our factory of ice flake machines :



    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing

    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing

    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing



    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing





    With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...

    We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.



    30ton Flake Ice Maker Machine for Concrete Mixing/Fishery/Fishing
