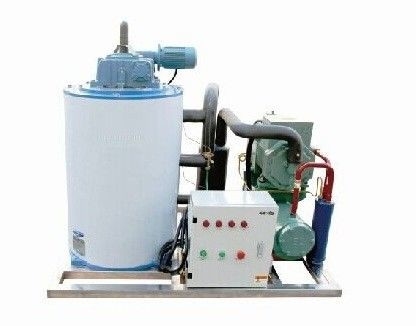

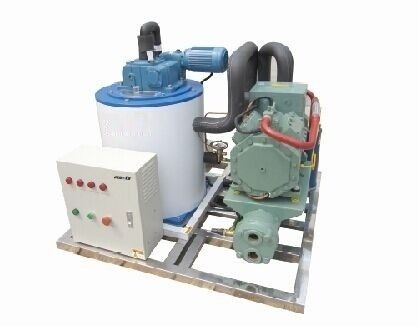

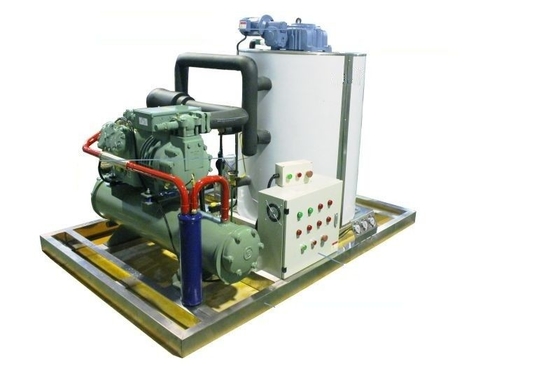

Ecoice 1ton/24hrs Seawater Ice Flake Machine for Fishing Vessel
Technical Data As Below :
1. Ambient Temp : 25 ºC ,Water Inlet Temp : 20ºC ;
2. Evaporating Temp : -20 ºC ;
3. Condensing Temp : 38 ºC ;
4. Power supply: 3P/380V/50HZ
5. Flake ice thickness:1.6-2.3 mm
6. Refrigerant gas type : R404a
Detailed Specification of Seawater Ice Flake Machine as below :
| Model |
ECO1T-R4SW |
ECO2T-R4SW |
ECO3T-R4SW |
ECO5T-R4SW |
| Daily Output (Ton/24Hrs) |
1 |
2 |
3 |
5 |
| Cooling Capacity (KW) |
6.7 |
12.2 |
19 |
31.6 |
| General Power (KW) |
5.25 |
8.91 |
12.24 |
22.39 |
| Compressor Input (KW) |
4.38 |
7.67 |
11 |
20.4 |
| Reductor Power(kw) |
0.37 |
0.37 |
0.37 |
0.37 |
| Cooling Mode |
Water Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
| Water Inlet/Drain Pipe |
1/2" |
1/2" |
1/2" |
1/2" |
| Weight (kgs) |
500 |
600 |
650 |
1050 |
| Dimension(mm) |
1320*950*1000 |
1500*1200*1300 |
1500*1200*1350 |
1800*1500*1560 |
** : We also could follow client detailed requirement to assemble correct machine .
Flake Ice Machine Accessory
|
Compressor
|
China
|
Expansion valve
|
United States
|
|
Evaporator
|
China
|
Gas-liquid separator
|
China
|
|
Shock absorber
|
Korea
|
Pressure controller
|
Denmark
|
|
Oil separator
|
United States
|
Reducer
|
China
|
|
Condenser
|
China
|
Pump
|
China
|
|
Cooling Tower
|
China
|
Water level switch
|
China
|
|
Cooling water pump
|
China
|
PLC controller
|
Korea
|
|
Reservoir
|
China
|
Air switch
|
Korea
|
|
Drying filter
|
Denmark
|
Contactor
|
Korea
|
|
The electromagnetic valve
|
Denmark
|
Thermal relay
|
Korea
|

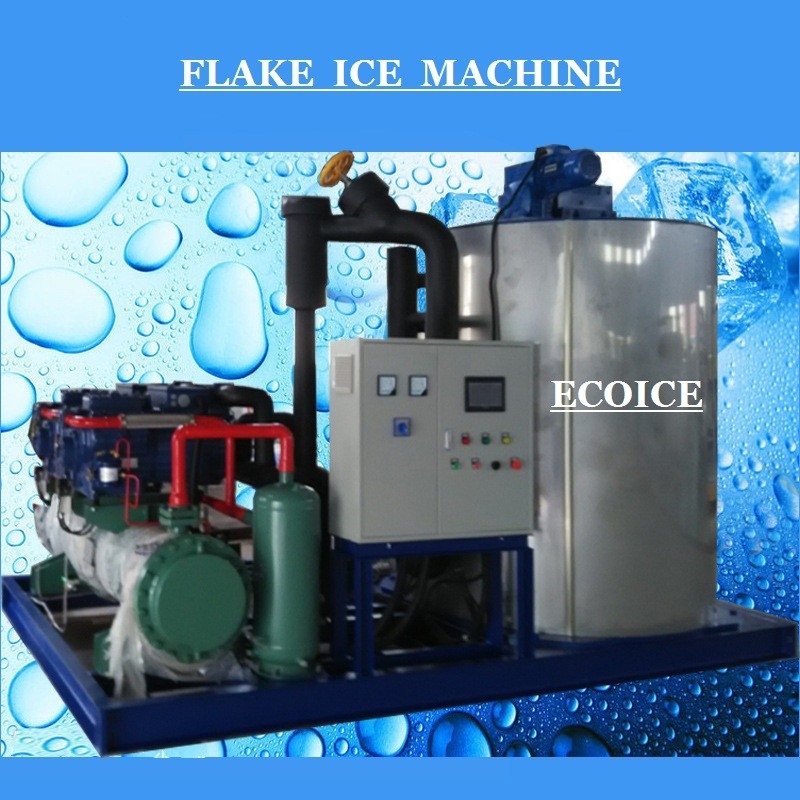

Main Parts of Flake Ice Machine :
Our factory of ice flake machines :
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia...
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.
