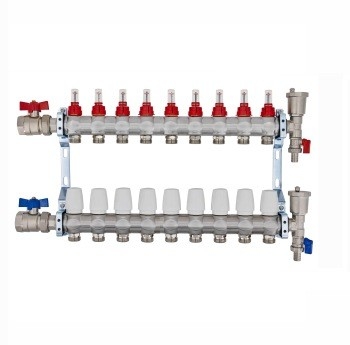

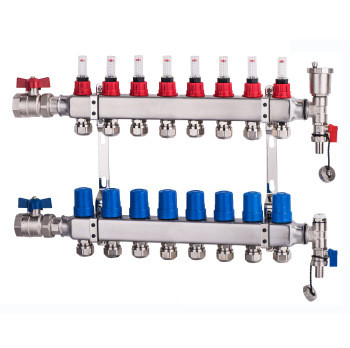

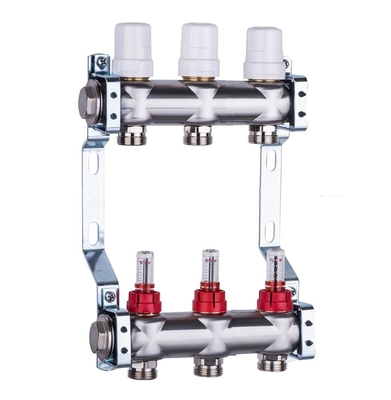

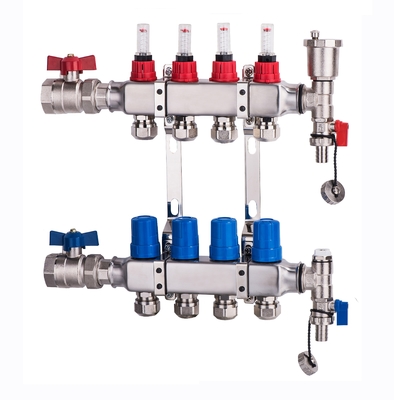

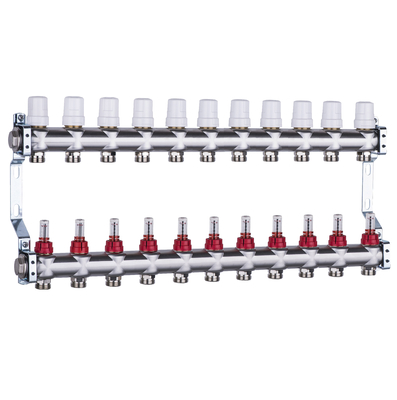

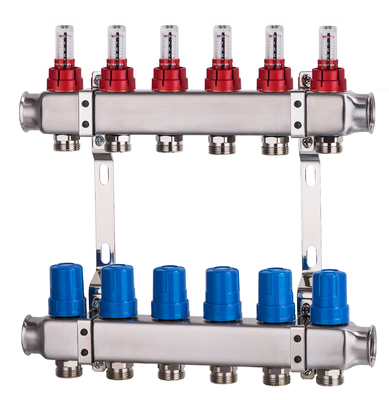

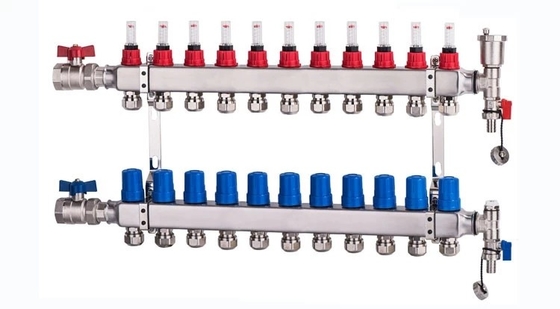

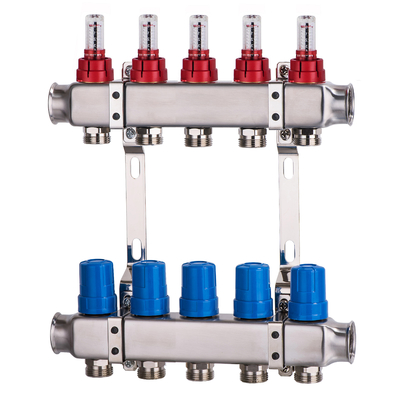

water manifold stainless steel for floor heating system
304 Stainless Steel Floor Heating Manifolds for floor heating system usage
Detailed specification
| Model no: |
HL-303-N3 |
| Main tube size: |
1" F G |
| No. of circuits: |
2--13 circuits |
| Hole distance: |
60mm |
| Flow meter rate: |
0--5 L/m. |
| Connectors: |
for 16*2.0mm or 20*2.0mm pipes |
| Brackets: |
200mm or 210mm |
| Application for actuator: |
M30*1.5mm |
| Working pressure: |
1.0 Mpa |
Manifold made from special profile of stainless steel 1.4301 with delivery and return assembly. Nickel plated holders with rubber inserts.
Delivery:
2-12pcs integrated nickel plated water flow meters, visible scale 0-5 l/min
2-12pcs connecting fittings 3/4" with euro-cone
1 pcs special plug 1" on primary side
1 pcs female thread 1" on primary side
Return:
1-12pcs integrated thermostat valves(optional with thermoelectric actuators, M30x1.5)
2-12pcs connecting fittings 3/4" with euro-cone
1 pcs special plug 1" on primary side
1 pcs female thread 1" on primary side
1 pair Mounting brackets: 210mm or 200mm centering according to customers' request.
Pressure tested according to DIN 3230, packed in cardbox
(manifold branches assembled)
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15 days if the goods are in stock. If the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us directly.
