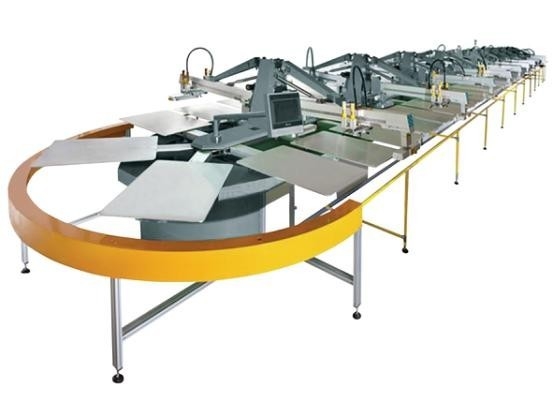

10 Color 36 Station Oval Evolution Automatic Screen Printing Press with Dryer
Product Application
1.High precision: advanced technology, mature and stable, the accuracy of the device set error between±0.02 mm, effectively improve the quality of printing products, improve the quality of printing products
2.The number of printing station: using the print head - dryer- cooling arrangement, good for all kinds of ink, especially suitable for Water slurry,Mucilage,ink etc.
3.High efficiency production: multicolor printing paste, the machinecan also be used for production lines, need only 3 people to operate machine, improve production efficiency, accelerate the recovery of capital.
4.The operation more simple and convenient: the net frame is fixed in unique way, ensure the stability of precision, the cooling station reduce water based printing paste plug effectively, improve the production efficiency.
5.General equipment: big and small size of the screen frame can be used, with a net frame or handprint net frame can be used, large pieces of cloth and garment printing Limited.
6.There is no chain drive: This machine adopts unique plate transmission, not the chain transmission structure, increase the stability of the equipment and prolong the service life of the equipment.
7.Environmental protection and low energy consumption: the screen printing machine is half the consumption equivalent printing machine, low power mobile oven, suitable for printing area.
8.High security: the machine equip around the emergency stop switch, effectively protect the safety of the operator
9.the frame can be adjusted upper and lower around the 15mm
|
Model
|
|
ECO-6
|
ECO-8
|
ECO-10
|
ECO-12
|
ECO-14
|
ECO-16
|
ECO-18
|
ECO-20
|
|
stations
|
|
22
|
28
|
34
|
40
|
46
|
52
|
58
|
64
|
|
color
|
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
|
Printing image
|
cm
|
58*73
|
|
Frame size max.
|
cm
|
66*95*25
|
|
Lenght of machine
|
cm
|
858
|
1064
|
1270
|
1476
|
1682
|
1888
|
2104
|
2320
|
|
Width of machine
|
cm
|
295
|
|
Height of machine
|
cm
|
160
|
|
weight
|
kg
|
3500
|
4000
|
4500
|
5000
|
5500
|
6000
|
6500
|
7000
|
|
Air consumption
|
m/min
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
0.45
|
0.5
|
|
air pressure
|
|
0.6MPa/0.8MPa (must after drying and fliter)
|
|
Print unit power
|
w
|
Servo motor of mono printing head(400w)
|
|
electric power consumption
|
kw
|
4.5
|
5.5
|
6
|
8
|
9
|
10
|
10.5
|
11.5
|
|
Power supply
|
|
380v 50Hz 3P
|
|
Speed
|
Pcs/h
|
800
|
Product Features
1. Precision Position
The inaccuracy of the machine is 0.02 due to advanced technology,which effectively improve the quality of the products as well as the printing pattern.
2.Multiple Working Station
Using the process of print head,oven and cooling,can produce various sizing agent, especially suitable for mucilage,ink,thick edition,printing,foaming,water etc.
3. High Production
One machine could print more than one color of sizing agents,and also use as multiple production lines.only need 3 people to operate it,strengthening production efficiency, fast investment return.
4. Convenient Operation
An unique style of fasten for screen frame,unique screen frame location,which do not need to take out the screen when cleaning it.easy to change screen frame.ensure the stability of precision. The cooling station effectively reduce the situation which screen is blocked by water base.
5. Universal Machine
The machine is suitable for various screens which are use for automatic printing and manual printing,and not limited to the printing of big size pieces and clothes.
6. Drive without Chain
The pallets are transfer by special method which use the structure of drive without chain,increase stability of the machine and prolong the service life of it.
7. Environmental Protection and Low Energy Consumption
The air consumption of this machine is equal to 50 percent of other machine,the removable oven is low energy consumption,and suitable for printing various size of pattern
FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing printing machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.
Q: How to maintain the machine?
A: Check the connection part amd clean the screen frame regularly.
