    Product Details:

    Place of Origin: China
    Brand Name: ECOICE
    Certification: CSA, ISO, CE
    Model Number: ECO-20121603

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: USD100-1000/PC
    Packaging Details: Standard Export Carton
    Delivery Time: 7-30days
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 500000PCS Per Year
    Contact Now
    Detailed Product Description
    Application Fields: Seafood Tank Or Aquarium Tanks Voltage: 3N-380V/415V 50Hz/60Hz,AC220V--240V
    Type: Air-cooled/water Chiller/unit Warranty: 12 Months
    After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Certification: CE,ISO9001
    Refrigerant: R22/R404a/R407c/R134a Cooling Capability(kw): 220kW~3100kW
    Evaporator: Tube/shell/coil/plate/tank Heat Exchanger For Choice Compressor Type: Scroll Closed Type/reciprocating/rotary

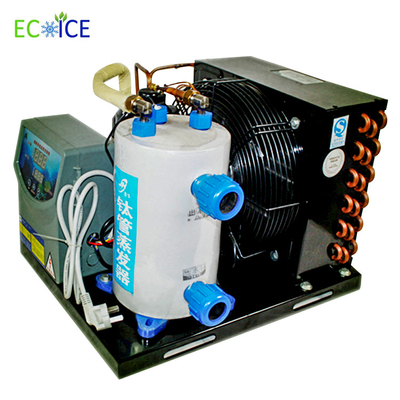

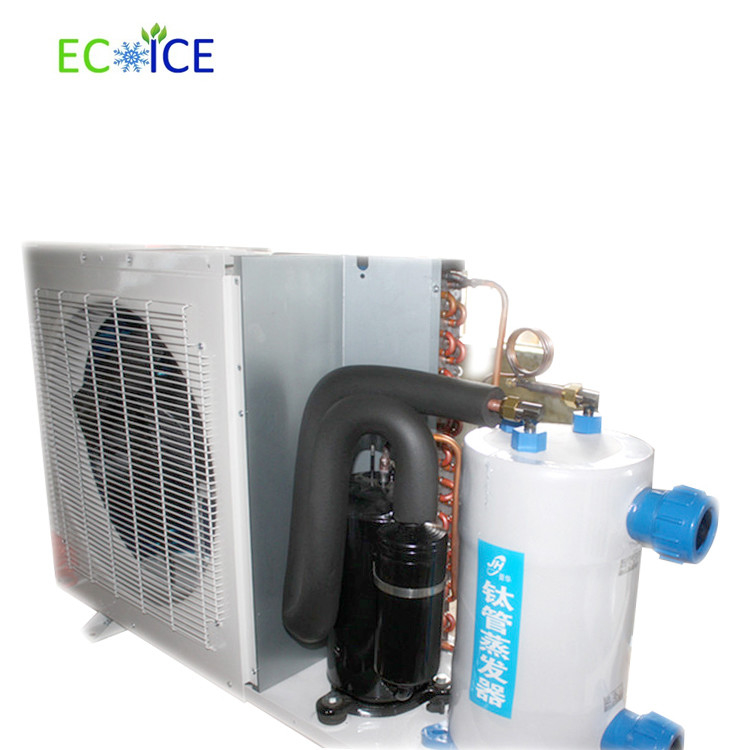

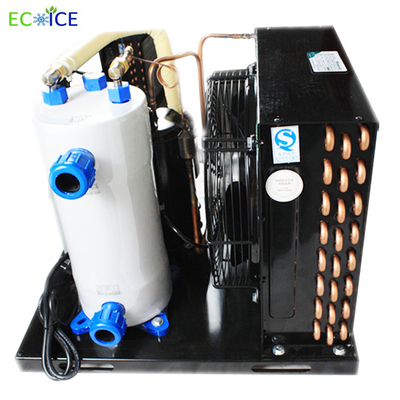

    Ecoice Aquarium Titanium Water Chillier/ blast water cooled chiller is a device that we install with fish tank filter system to chill an external to cool the water tank water as it is circulated through the filter.

    An aquarium titanium water chiller works by the process of heat exchanger, taking heat from the water, which effectively lowers the water temperature to comfort the fish , shrimps .



    Aquarium titanium water chiller includes the following parts :

    1. pure titanium pipe heat exchanger .
    2. copper tube condenser
    3. famous brand compressor
    4. digital temperature controller
    5. different cooling capacity of water chiller available
    6. sample order is ok . we have stock of samples .
    7. good quality with best sales service

    The water chillers devices are small, quiet, simple to install, and their maintenance is relatively straightforward and hassle-free. Aquarium chillers have a thermostat that monitors the water temperature. You set the temperature you want, and the chiller turns itself off and on as required .

    When used in an aquarium situation, warmth from the tank is absorbed by a probe that sits in the water. That heat is then transferred to a “heatsink” that’s positioned above the water, and a fan pulls heat away from the heatsink.

    The main advantage of that kind of aquarium chiller is that they are simple and compact in design. The downsides are that you need to drill through your tank or mount a device on which to mount the probe somewhere above your aquarium.



    air cooled water chiller for Water Tank or Showcase Aquarium Cooling



    Water cooled aquarium water chiller specification sheet :



    Model No. ECOC-09K ECOC-12K ECOC-18K ECOC-24K ECOC-36K ECOC-60K
    Cooling capacity 9000btu 12000btu 18000btu 24000btu 36000btu 60000btu
    Voltage 220v/50hz/1ph ,380v/50hz/3ph
    Heat Exchanger shell & tube titanium heat exchanger
    Condenser air cooled copper tube aluminium fin condenser
    Refrigerant Gas R22/R134A/R410A
    Unit Power(kw) 1 1.2 2.25 3 4.5 7.5
    Water Pump(HP) 1/2 1/2 1/2 1/2 1/2 1
    Connection (in/out) 3/4" 3/4" 3/4" 3/4" 3/4" 1"





    air cooled water chiller for Water Tank or Showcase Aquarium Cooling

    Titanium Water Chiller Application :

    • Aquarium / aquaculture
    • Swimming pool chilling
    • Laser cutting
    • Open mill machine
    • Outdoor ice bath chiller for sports recovery

    Titanium Water Chiller Pacakge :
