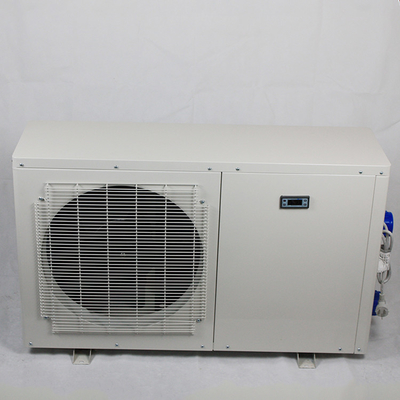

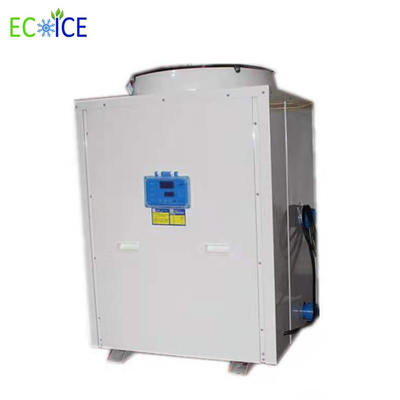

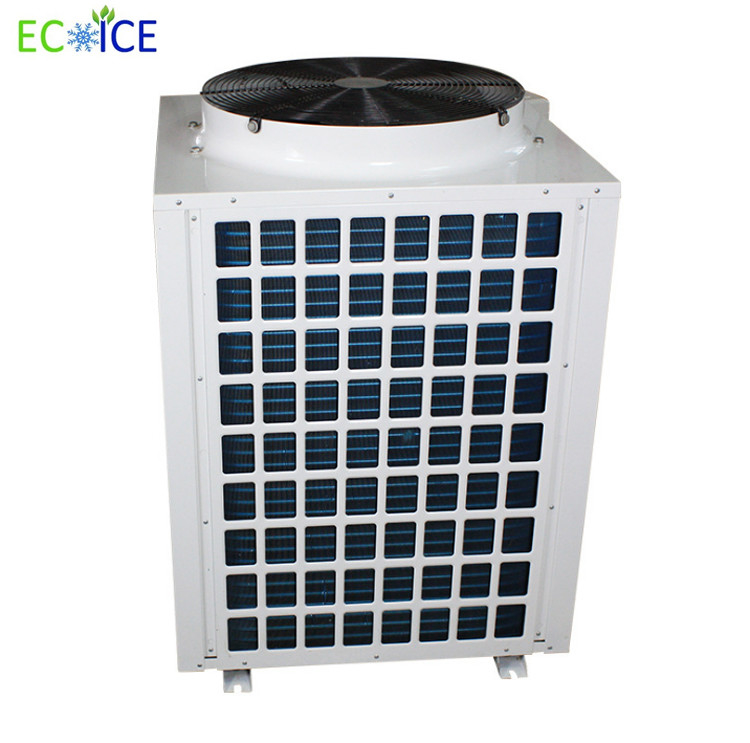

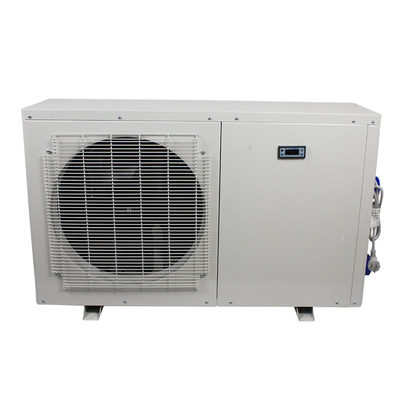

Ecoice Aquarium Titanium Water Chillier/ blast water cooled chiller is a device that we install with fish tank filter system to chill an external to cool the water tank water as it is circulated through the filter.
An aquarium titanium water chiller works by the process of heat exchanger, taking heat from the water, which effectively lowers the water temperature to comfort the fish , shrimps .
Aquarium titanium water chiller includes the following parts :
- pure titanium pipe heat exchanger .
- copper tube condenser
- famous brand compressor
- digital temperature controller
- different cooling capacity of water chiller available
- sample order is ok . we have stock of samples .
- good quality with best sales service
The water chillers devices are small, quiet, simple to install, and their maintenance is relatively straightforward and hassle-free. Aquarium chillers have a thermostat that monitors the water temperature. You set the temperature you want, and the chiller turns itself off and on as required .
When used in an aquarium situation, warmth from the tank is absorbed by a probe that sits in the water. That heat is then transferred to a “heatsink” that’s positioned above the water, and a fan pulls heat away from the heatsink.
The main advantage of that kind of aquarium chiller is that they are simple and compact in design. The downsides are that you need to drill through your tank or mount a device on which to mount the probe somewhere above your aquarium.
Water cooled aquarium water chiller specification sheet :
| Model No. |
ECOC-09K |
ECOC-12K |
ECOC-18K |
ECOC-24K |
ECOC-36K |
ECOC-60K |
| Cooling capacity |
9000btu |
12000btu |
18000btu |
24000btu |
36000btu |
60000btu |
| Voltage |
220v/50hz/1ph ,380v/50hz/3ph |
| Heat Exchanger |
shell & tube titanium heat exchanger |
| Condenser |
air cooled copper tube aluminium fin condenser |
| Refrigerant Gas |
R22/R134A/R410A |
| Unit Power(kw) |
1 |
1.2 |
2.25 |
3 |
4.5 |
7.5 |
| Water Pump(HP) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
1 |
| Connection (in/out) |
3/4" |
3/4" |
3/4" |
3/4" |
3/4" |
1" |
Titanium Water Chiller Application :
- Aquarium / aquaculture
- Swimming pool chilling
- Laser cutting
- Open mill machine
- Outdoor ice bath chiller for sports recovery
Titanium Water Chiller Pacakge :
