Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

China Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier
Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium supplier

Large Image :  Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Product Details:

Place of Origin: CHINA
Brand Name: ECOICE
Certification: CE
Model Number: ECOB-5.0
Liquid Flow Rate: 8.6m3/H
Maximum Working Pressure: 4.5MPa
Voltage: 220V/380V
Heating Capacity: 20.0kw
Warranty: 24month
Material: Titanium Tube and PVC-U Shell

Payment & Shipping Terms:

Minimum Order Quantity: 50pc
Price: usd50-500/pc
Packaging Details: cartons+pallet
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500000PCS Per Year
Contact Now
Detailed Product Description
Material: Aluminum Voltage: 220V-380V 50HZ
Structure: Tube Heat Exchanger Practical Application:: Heating/cooling

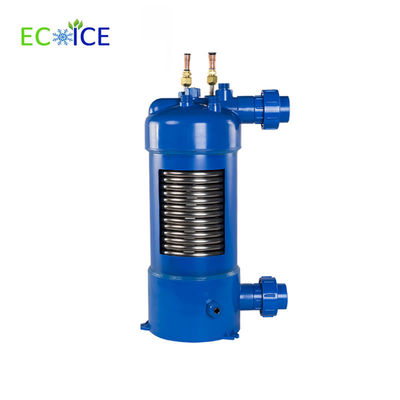

Heat Exchanger for Swimming Pool with PVC Shell Titanium Coil

Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium



Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of TitaniumShell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of TitaniumShell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Using Conditions:



Refrigerant side

(in Ti twisted tube)

Water side

(in the shell)

Max.pressure 5.3MPa 0.5Mpa(default), 0.6-0.8MPa (optional)
Normalpressure ≤4.5MPa 0.3-0.4MPa
Temp.range -50-150°C -10-45°C
Refrigerant type

R22,R134a,R404a,R407c,

R410a,R417a,R600a,etc.



Sea water,Plating Solutions,antifreeze,

Swimming pool water, groundwater,juice,ect

Remarks



1,Please purge air from water system, and ensure the work pressure not exceed the max pressure.

2,Please keep the water clean, suggest to install filter and clean the system regularly.

3,Please drain off water when the machine stopped during the colds season to avoid freezing.



Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Swimming Pool Heat Pump Titanium Heat Exchanger Technical Information :

Modle Capacity(kw)

Water flow

(m3/h)

H

(mm)

H1

(mm)

H2

(mm)

D

(mm)

E

(mm)

Water inlet &outlet

(inch)

ECOB-1.0 4.0 1.7 360 200 60 160 195 1.0
ECOB-1.5 6.0 2.6 415 325 60 160 195 1.0
ECOB-2.0 8.5 3.6 495 335 60 160 195 1.0
ECOB-2.5 10 4.3 410 335 60 160 195 1.0
ECOB-3.0 12 5.16 560 400 70 200 235 1.0
ECOB-4.0 16 6.9 645 540 70 200 235 1.0
ECOB-5.0 20 8.6 645 540 70 200 235 1.0

NOTE:Heating capacity is based on water inlet temp.20ºC,Ambient air temp.24ºC(DB)/19ºC(WB)

Product Instructions:

1. Application:

It used in swimming pool equipment, heat pump units, air conditioning and refrigeration equipment.

2. Material:
2.1 the outer PVC-U materials with acid, strong resistance, corrosion resistance, good compression performance, high strength, light weight ,low price etc, (mold shell size from160 to 315).

2.2 on the top and the base composed of special PVC material with a set of injection molding, conform to the requirements of the ROHS directive, under high pressure, long service life, appearance beautiful, use safety, in high thermal efficiency, convenient installation

2.3 inner tube for the strong corrosion resistance of pure titanium or by HXY patent titanium whorl pipe coil.Efficient titanium threaded pipe is high efficient heat transfer products, reach the advanced level of the current field of heat exchanger heat transfer efficient.



Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium

Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium



Quality Controlling :

1) Research & development
R&D is the core of products technology, it has a crucial import on products performance ,working condition, production quality, production cost and so on. Our R&D team has many years experience of heat pump, we are improving the COP technology and defrosting items.


2)Purchasing
In order to control products quality ,meet engineer demand, Suoning purchasing department purchase good quality materials according to each model heat pump BOM list .Suoning demand each spare parts supplier has products testing report, and relative CCC, ISO certificated, from compressor, expansion vale and so on.


3). Production
Each worker must operate seriously according to production operating standard, pay attention to each installation link, both copper pipe welding and electric controlling connection are both finished with professional technology.


4).Checking
Each heat pump must be checked seriously before leave our factory. COP, heating capacity must reach national standard, all parameters such as current pressure, and water temperature and so on must be recorded, each heat pump test report is stored.


5). Package
After testing and checking , a qualified heat pump is packaged by plastic protective film and wooden case before send to our warehouse, avoid hitting.
Shell and Tube Swimming Heat Exchanger Corrosion Resistence System Swimming Pool Heat Pump of Titanium
