Place of Origin: | China |
Brand Name: | ECOICE |
Certification: | CSA, ISO, CE |
Model Number: | ECOS-20122406 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | USD100-1000/PC |
Packaging Details: | Standard Export Carton |
Delivery Time: | 7-30days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 500000PCS Per Year |
Application Fields: | Seafood Tank Or Aquarium Tanks | Voltage: | 3N-380V/415V 50Hz/60Hz,AC220V--240V |
---|---|---|---|
Type: | Air-cooled/water Chiller/unit | Warranty: | 12 Months |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Certification: | CE,ISO9001 |
Refrigerant: | R22/R404a/R407c/R134a | Cooling Capability(kw): | 220kW~3100kW |
Evaporator: | Tube/shell/coil/plate/tank Heat Exchanger For Choice | Compressor Type: | Scroll Closed Type/reciprocating/rotary |

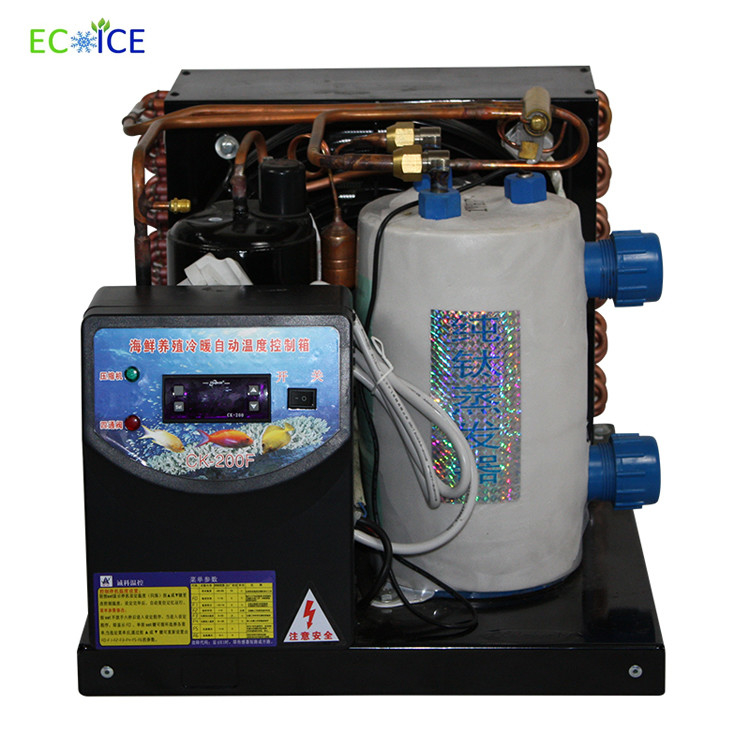

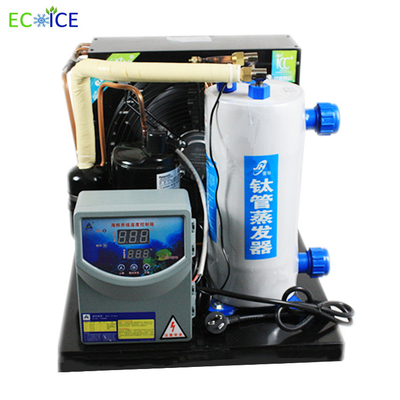

Ecoice Aquarium Titanium Water Chillier a device that we install with fish tank filter system to chill an external to cool the water tank water as it is circulated through the filter.
An aquarium titanium water chiller works by the process of heat exchanger, taking heat from the water, which effectively lowers the water temperature to comfort the fish , shrimps .
Aquarium titanium water chiller includes the following parts :
The water chillers devices are small, quiet, simple to install, and their maintenance is relatively straightforward and hassle-free. Aquarium chillers have a thermostat that monitors the water temperature. You set the temperature you want, and the chiller turns itself off and on as required .
When used in an aquarium situation, warmth from the tank is absorbed by a probe that sits in the water. That heat is then transferred to a “heatsink” that’s positioned above the water, and a fan pulls heat away from the heatsink.
The main advantage of that kind of aquarium chiller is that they are simple and compact in design. The downsides are that you need to drill through your tank or mount a device on which to mount the probe somewhere above your aquarium.
Water cooled aquarium water chiller specification sheet :
Model No. | ECOC-09K | ECOC-12K | ECOC-18K | ECOC-24K | ECOC-36K | ECOC-60K |
Cooling capacity | 9000btu | 12000btu | 18000btu | 24000btu | 36000btu | 60000btu |
Voltage | 220v/50hz/1ph ,380v/50hz/3ph | |||||
Heat Exchanger | shell & tube titanium heat exchanger | |||||
Condenser | air cooled copper tube aluminium fin condenser | |||||
Refrigerant Gas | R22/R134A/R410A | |||||
Unit Power(kw) | 1 | 1.2 | 2.25 | 3 | 4.5 | 7.5 |
Water Pump(HP) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 |
Connection (in/out) | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 1" |
Titanium Water Chiller Application :
Titanium Water Chiller Pacakge :
Contact Person: Ms. Sammi
Tel: 008615628783078
