1Ton PVC shell and tube titanium condenser for seafood aquaculture

1Ton PVC shell and tube titanium condenser for seafood aquaculture

    • 1Ton PVC shell and tube titanium condenser for seafood aquaculture
    • 1Ton PVC shell and tube titanium condenser for seafood aquaculture
    • 1Ton PVC shell and tube titanium condenser for seafood aquaculture
    • 1Ton PVC shell and tube titanium condenser for seafood aquaculture
  • 1Ton PVC shell and tube titanium condenser for seafood aquaculture

    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE
    Model Number: 1HP Heat Exchanger
    Liquid Flow Rate: 7m3/H
    Maximum Working Pressure: 3.0MPa
    Voltage: 220V/380V
    Heating Capacity: 15kw
    Warranty: 24month
    Material: Titanium Tube and PVC-U Shell

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 PCS
    Price: USD50-500/pc
    Packaging Details: cartons+pallet
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500000PCS Per Year
    Contact Now
    Detailed Product Description
    Material: Aluminum Voltage: 220V-380V 50HZ
    Structure: Tube Heat Exchanger Practical Application:: Heating/cooling

    Titanium Heat Exchanger Water Cooling Coil For Sea Water

    1Ton PVC shell and tube titanium condenser for seafood aquaculture
    1Ton PVC shell and tube titanium condenser for seafood aquaculture

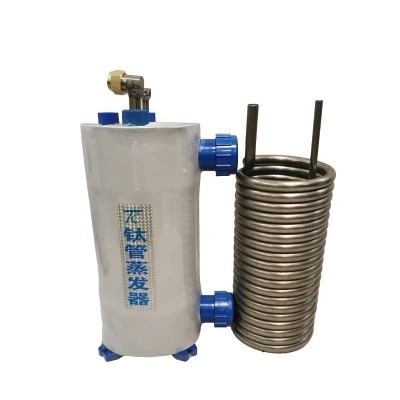

    The evaporator is made of pure titanium tube with a pollution-free and chemically stable PVC shell.
    The outer shell diameter of the product is 160 mm and the length is 450 mm.
    The diameter and thickness of titanium tube are 19 mm and 1.00 mm respectively.

    It is widely used in evaporator of petrochemical, electroplating and laser mechanical cooling environments with corrosive media.
    The product has excellent heat transfer effect and excellent corrosion resistance in seawater.
    We can also design corresponding heat exchangers according to the specific needs of customers.

    1Ton PVC shell and tube titanium condenser for seafood aquaculture
    1Ton PVC shell and tube titanium condenser for seafood aquaculture



    Using Conditions:



    Refrigerant side
    (in Ti twisted tube)

    Water side
    (in the shell)

    Max.pressure5.3MPa0.5Mpa(default), 0.6-0.8MPa (optional)
    Normalpressure≤4.5MPa0.3-0.4MPa
    Temp.range-50-150°C-10-45°C
    Refrigerant type

    R22,R134a,R404a,R407c,
    R410a,R417a,R600a,etc.


    Sea water,Plating Solutions,antifreeze,
    Swimming pool water, groundwater,juice,ect

    Remarks


    1,Please purge air from water system, and ensure the work pressure not exceed the max pressure.
    2,Please keep the water clean, suggest to install filter and clean the system regularly.
    3,Please drain off water when the machine stopped during the colds season to avoid freezing.



    1Ton PVC shell and tube titanium condenser for seafood aquaculture
    Product Instructions:
    1. Application:
    It used in swimming pool equipment, heat pump units, air conditioning and refrigeration equipment.
    2. Material:
    2.1 the outer PVC-U materials with acid, strong resistance, corrosion resistance, good compression performance,

    high strength, light weight ,low price etc, (mold shell size from160 to 315).
    2.2 on the top and the base composed of special PVC material with a set of injection molding, conform to the requirements of the ROHS directive,
    under high pressure, long service life, appearance beautiful, use safety, in high thermal efficiency, convenient installation

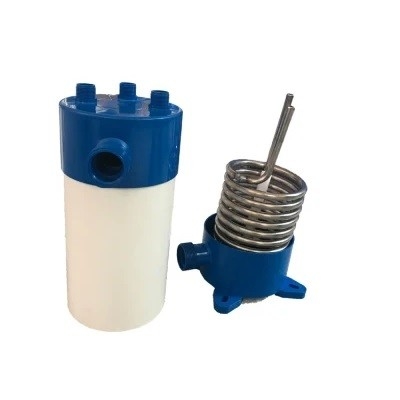

    2.3 inner tube for the strong corrosion resistance of pure titanium or by HXY patent titanium whorl pipe coil.Efficient titanium threaded pipe is high

    efficient heat transfer products, reach the advanced level of the current field of heat exchanger heat transfer efficient.

    1Ton PVC shell and tube titanium condenser for seafood aquaculture
    1Ton PVC shell and tube titanium condenser for seafood aquaculture
    1Ton PVC shell and tube titanium condenser for seafood aquaculture

    Quality Controlling :
    1) Research & development
    R&D is the core of products technology, it has a crucial import on products performance ,working condition, production quality, production cost and so on. Our R&D team has many years experience of heat pump, we are improving the COP technology and defrosting items.

    2)Purchasing
    In order to control products quality ,meet engineer demand, Suoning purchasing department purchase good quality materials according to each model heat pump BOM list .Suoning demand each spare parts supplier has products testing report, and relative CCC, ISO certificated, from compressor, expansion vale and so on.

    3). Production
    Each worker must operate seriously according to production operating standard, pay attention to each installation link, both copper pipe welding and electric controlling connection are both finished with professional technology.

    4).Checking
    Each heat pump must be checked seriously before leave our factory. COP, heating capacity must reach national standard, all parameters such as current pressure, and water temperature and so on must be recorded, each heat pump test report is stored.

    5). Package
    After testing and checking , a qualified heat pump is packaged by plastic protective film and wooden case before send to our warehouse, avoid hitting.
    FAQ

    Q: Are you trading company or manufacturer ?

    A: We have factory who professionally produces titanium heat exchanger

    Q: How long is your delivery time?

    A: Generally it is 5-35 days according to quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What is your terms of payment ?

    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
    1Ton PVC shell and tube titanium condenser for seafood aquaculture
