Product Description
- A titanium tube heat exchanger is a type of heat exchanger that uses titanium tubes to transfer heat between two fluids. Titanium is chosen for its exceptional corrosion resistance, high strength-to-weight ratio, and ability to withstand extreme temperatures, making it ideal for demanding industrial applications.
- Titanium tube heat exchangers are the preferred choice in harsh, corrosive environments where longevity and reliability are critical. While the initial investment is higher, their extended lifespan and low maintenance often make them cost-effective in the long run.
-
Product Application
| Model |
Capacity
(KW) |
Water Flow
(m³/h) |
H
(mm) |
H1
(mm) |
H2
(mm) |
D
(mm) |
E
(mm) |
Water Inlet/Outlet
(inch) |
| HETA-1.0 |
3.5 |
1.5 |
400 |
250 |
60 |
160 |
195 |
1.5 |
| HETA-1.5 |
6.5 |
2.2 |
475 |
325 |
60 |
160 |
195 |
1.5 |
| HETA-2.0 |
8.5 |
3 |
535 |
385 |
60 |
160 |
195 |
1.5 |
| HETA-2.5 |
10 |
3.5 |
550 |
400 |
60 |
160 |
195 |
1.5 |
| HETA-3.0 |
12 |
4.5 |
600 |
450 |
60 |
160 |
195 |
1.5 |
| HETA-4.0 |
15 |
5 |
640 |
490 |
60 |
160 |
195 |
1.5 |
| HETA-5.0 |
18 |
7.5 |
650 |
500 |
70 |
200 |
235 |
1.5 |
|
|
| |
|
| |
|
Titanium heat exchangers are widely used in industries where corrosion resistance and durability are critical:
Chemical Processing – Handling aggressive acids, chlorides, and other corrosive chemicals.
Marine & Offshore – Resistant to seawater corrosion, used in desalination plants, ship cooling systems, and offshore oil platforms.
Power Plants – Condensers, coolers, and heat recovery systems in nuclear and thermal power stations.
Oil & Gas – Heat recovery in refineries and petrochemical plants where sour gas and acidic conditions exist.
Pharmaceutical & Food Processing – Hygienic and non-reactive with sensitive products.
Aerospace & Automotive – Lightweight yet strong for high-performance cooling applications.
Packing & Delivery
ShanDong EcoIce Refri Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS certificate.

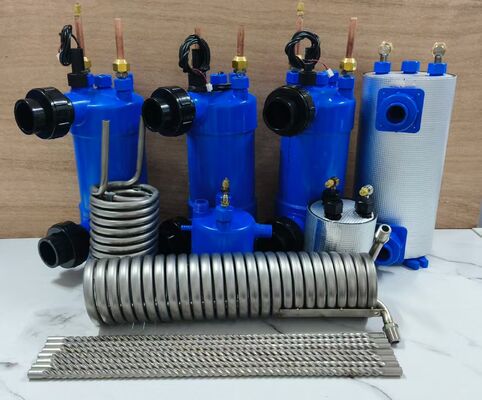

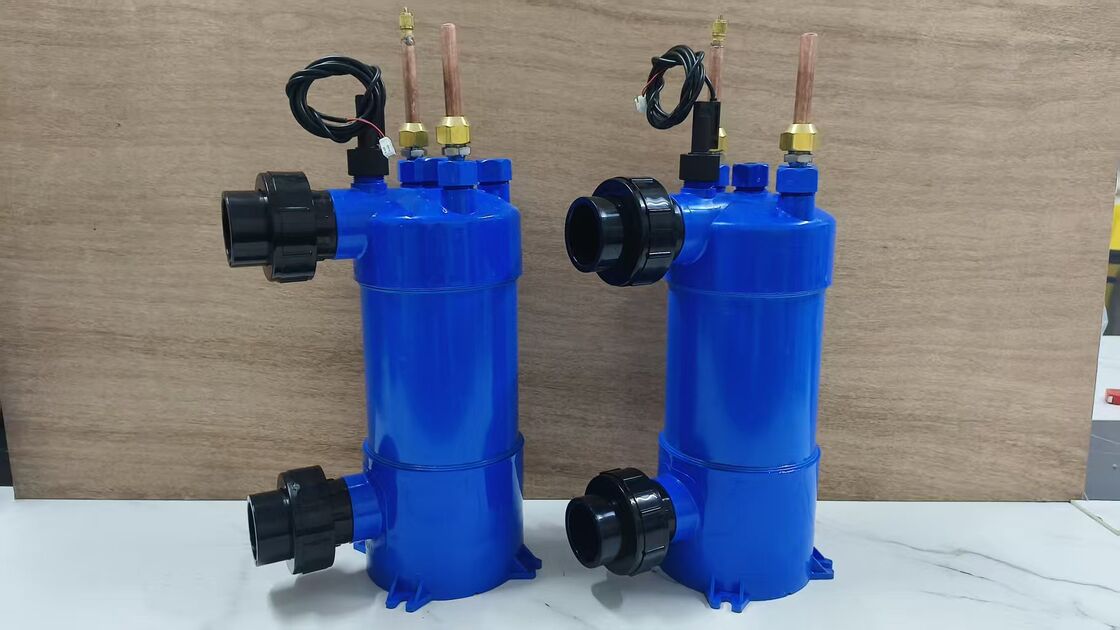

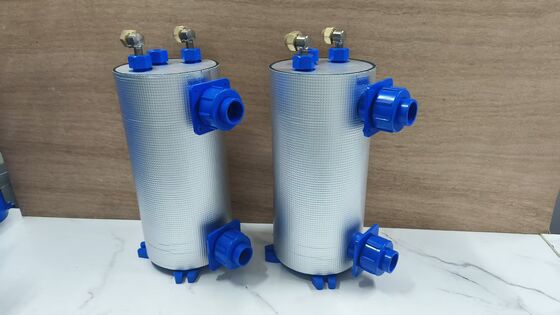

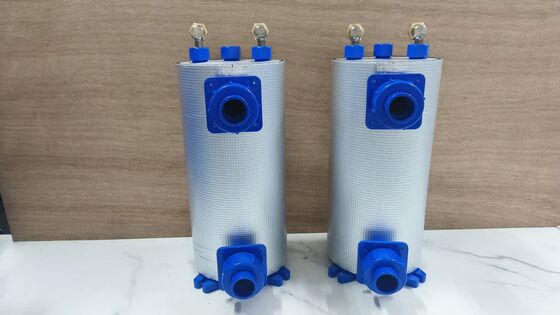

With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia... We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.Low Price Titanium Evaporator Titanium Tube PVC Shell for Aquarium Chiller heat exchanger.
