Product Description

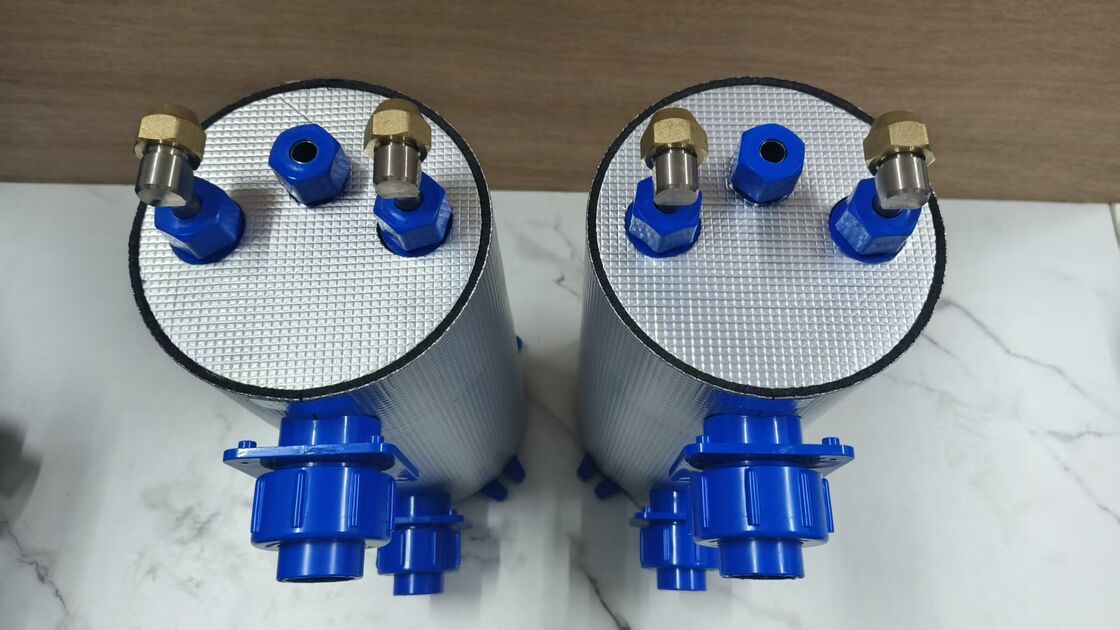

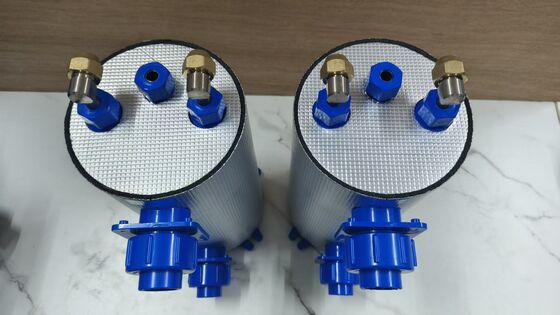

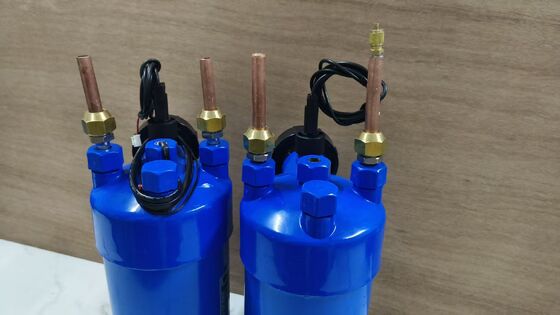

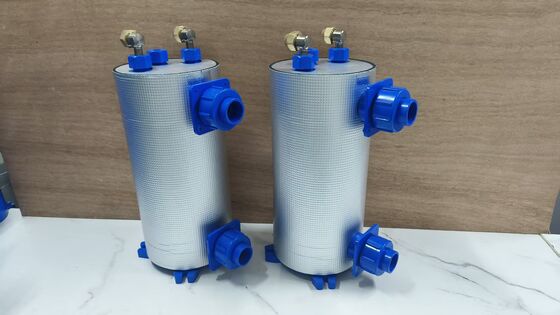

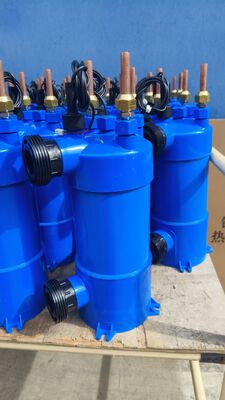

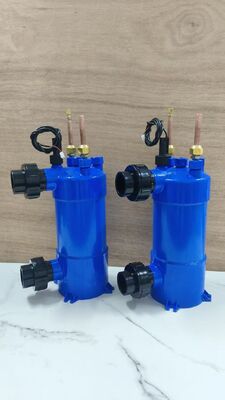

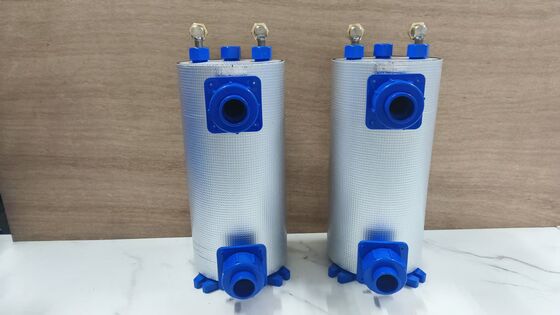

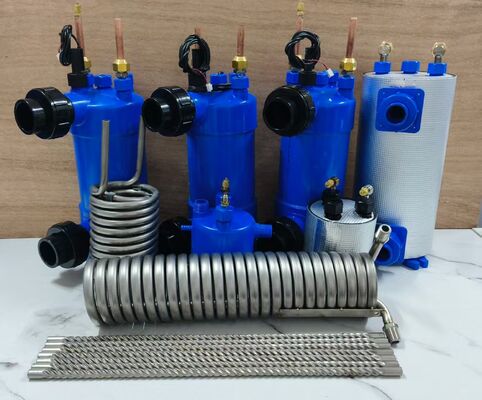

Titanium Tube Heat Exchanger for Heat Pump
- A titanium tube heat exchanger is a type of heat exchanger that uses titanium tubes to transfer heat between two fluids. Titanium is chosen for its exceptional corrosion resistance, high strength-to-weight ratio, and ability to withstand extreme temperatures, making it ideal for demanding industrial applications.
- Titanium tube heat exchangers are the preferred choice in harsh, corrosive environments where longevity and reliability are critical. While the initial investment is higher, their extended lifespan and low maintenance often make them cost-effective in the long run.
Quality Controlling :
1) Research & development
R&D is the core of products technology, it has a crucial import on products performance ,working condition, production quality, production cost and so on. Our R&D team has many years experience of heat pump, we are improving the COP technology and defrosting items.
2)Purchasing
In order to control products quality ,meet engineer demand, Suoning purchasing department purchase good quality materials according to each model heat pump BOM list .Suoning demand each spare parts supplier has products testing report, and relative CCC, ISO certificated, from compressor, expansion vale and so on.
3). Production
Each worker must operate seriously according to production operating standard, pay attention to each installation link, both copper pipe welding and electric controlling connection are both finished with professional technology.
4).Checking
Each heat pump must be checked seriously before leave our factory. COP, heating capacity must reach national standard, all parameters such as current pressure, and water temperature and so on must be recorded, each heat pump test report is stored.
5). Package
After testing and checking , a qualified heat pump is packaged by plastic protective film and wooden case before send to our warehouse, avoid hitting.
Product Application
Titanium heat exchangers are widely used in industries where corrosion resistance and durability are critical:
| Model |
Capacity
(KW) |
Water Flow
(m³/h) |
H
(mm) |
H1
(mm) |
H2
(mm) |
D
(mm) |
E
(mm) |
Water Inlet/Outlet
(inch) |
| HETA-1.0 |
3.5 |
1.5 |
400 |
250 |
60 |
160 |
195 |
1.5 |
| HETA-1.5 |
6.5 |
2.2 |
475 |
325 |
60 |
160 |
195 |
1.5 |
| HETA-2.0 |
8.5 |
3 |
535 |
385 |
60 |
160 |
195 |
1.5 |
| HETA-2.5 |
10 |
3.5 |
550 |
400 |
60 |
160 |
195 |
1.5 |
| HETA-3.0 |
12 |
4.5 |
600 |
450 |
60 |
160 |
195 |
1.5 |
| HETA-4.0 |
15 |
5 |
640 |
490 |
60 |
160 |
195 |
1.5 |
| HETA-5.0 |
18 |
7.5 |
650 |
500 |
70 |
200 |
235 |
1.5 |
|
|
| |
|
| |
|
Chemical Processing – Handling aggressive acids, chlorides, and other corrosive chemicals.
Marine & Offshore – Resistant to seawater corrosion, used in desalination plants, ship cooling systems, and offshore oil platforms.
Power Plants – Condensers, coolers, and heat recovery systems in nuclear and thermal power stations.
Oil & Gas – Heat recovery in refineries and petrochemical plants where sour gas and acidic conditions exist.
Pharmaceutical & Food Processing – Hygienic and non-reactive with sensitive products.
Aerospace & Automotive – Lightweight yet strong for high-performance cooling applications.
<img alt="" data-cke-saved-src="
Packing & Delivery
<img alt="" data-cke-saved-src="" src="" test="" sdecoice.com="" photo="" pl211460151-remark.jpg"="">
Company Profile
ShanDong EcoIce Refri Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China.
With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS certificate.
With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia... We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.Low Price Titanium Evaporator Titanium Tube PVC Shell for Aquarium Chiller heat exchanger.
