Product Description

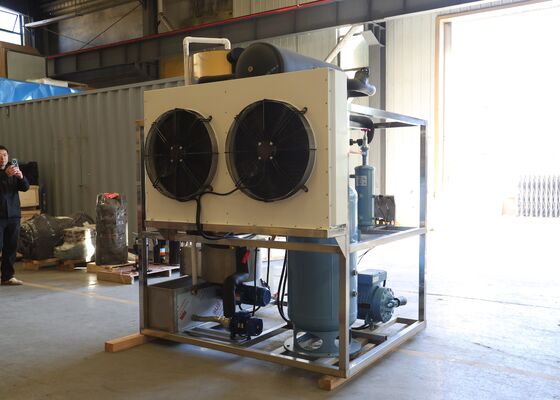

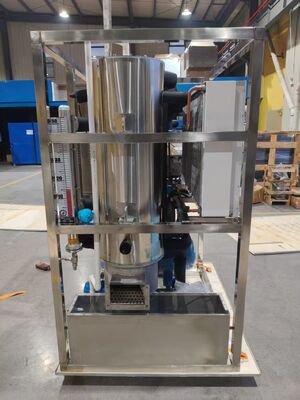

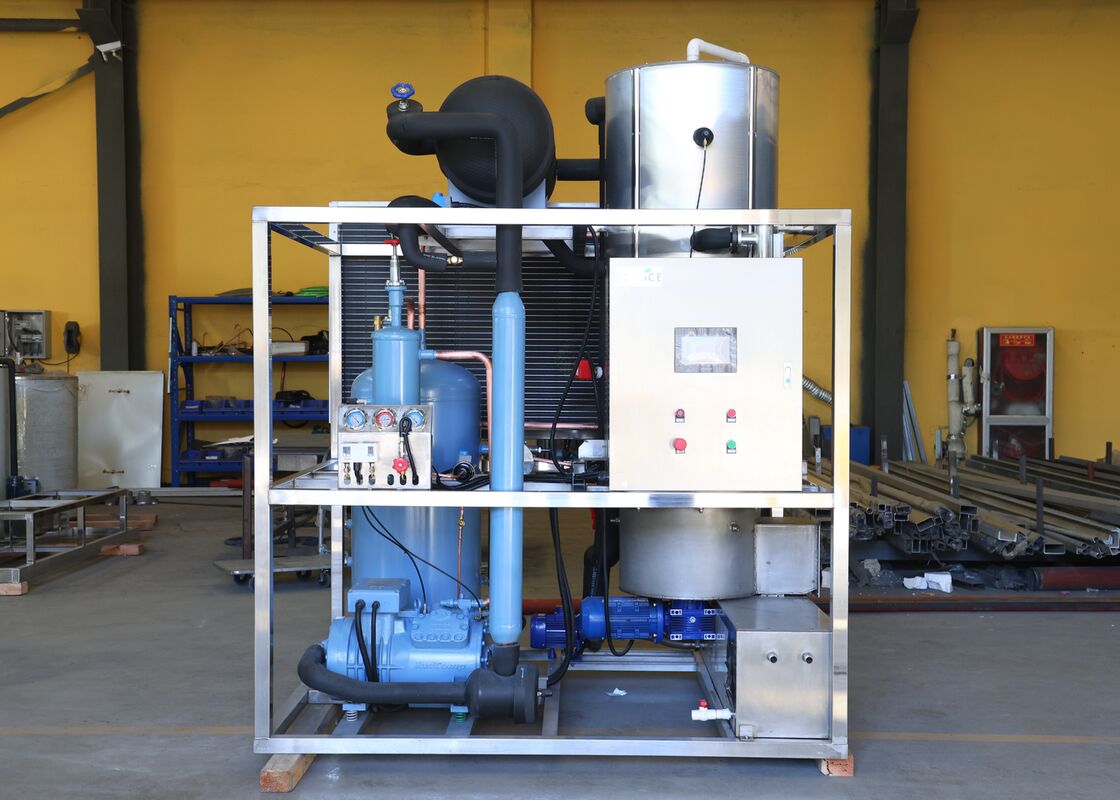

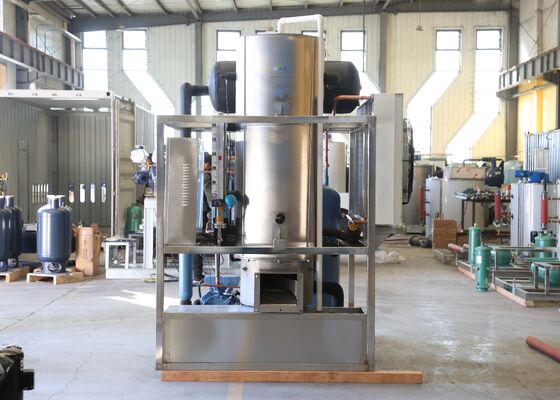

Ecoice Tube Ice Machine is an industrial food grade ice making device, designed to produce cylindrical ice tubes, known as tube ice.
1.We could make tube ices with diameters : 22mm,29mm,32mm,35mm with tube length around 30~40mm.
2.All materials of our tube ice machines which contact with ices we use food grade stainless steel to ensure the safety of our ices.
3.PLC intelligent controller to make sure full automatic production .
4.Tube ices are mainly used for drink cooling , fishery , food processing , food preservation......
5.We also can match the stainless steel conveyor , ice bin and automatic package system.
Tube Ice Machine Technical Data
Standard design operating conditions: ambient temperature 30°C, inlet water temperature 20°C
Trial operating conditions: ambient temperature 5°C-40°C, water temperature 5°C-40°C
Tube ice sizes: Tube ice outer diameter is 22mm, 28mm, 32mm, 35mm;
The inner diameter can be adjusted according to the ice making time.
Customer-selectable refrigerants: R404A/R717/R507C
Tube ice Machine Advantage Features
1.Special ice making method to remove water impurity .The ice is hard and powderless.
2.The tube ice, in hollow tube shape,is transparent,sanitary and environment friendly.
3.Several dimensions for your option.
Outer diameter:∅22,∅28,∅32,∅35mm , Tube Length : 30~40mm.
4.Compared with flake ice,tube ice has longer melting time.
Specification
|
Model
|
Ice output
|
Cooling capacity
|
Input power
|
Weight
|
Diameter(mm)
|
|
ECOT-1T
|
1T/24H
|
11.9KW
|
6.21kw
|
950kg
|
1440*900*1950
|
|
ECOT-2T
|
2T/24H
|
18.8KW
|
8.39kw
|
1150kg
|
1650*1300*2150
|
|
ECOT-3T
|
3T/24H
|
33.5KW
|
14.5kw
|
1280kg
|
1650*1300*2100
|
|
ECOT-5T
|
5T/24H
|
49.6KW
|
22.73kw
|
1600kg
|
1750*1400*2200
|
|
ECOT-10T
|
10T/24H
|
80.9kw
|
42.85kw
|
2750kg
|
2300*1600*3100
|
|
ECOT-20T
|
20T/24H
|
161.8kw
|
82kw
|
5200kg
|
2400*2100*2250
|
|
ECOT-30T
|
30T/24H
|
242.7kw
|
115.7kw
|
6400kg
|
2900*2100*2250
|
|
Product Advantage
Product Application
1.Edible ice factory.
2.Port ice plant.
3.Coffee shop,bar and hotel etc.
4.Supermarket,convenience shop and restaurant etc.
5.Aquatic products and food fresh preservation.
6.Logistic fresh preservation.
7.Chemical and concrete projects.
Company Profile
ShanDong EcoIce Refri Co., Ltd is a professional manufacturer and exporter of ice machines and blast freezers in China .In the past 15 years , we are dedicating to design and produce ice machines such as flake ice machines , block ice machine , tube ice machine ,slurry ice machine and brick ice machine with high quality , good performance .
Our ice machine evaporators are made by our own factory using SUS316 plate / carbon steel plate . The main parts of ice machine includes refrigeration system , control system and ice maker system are using famous brand products.It could assure the machines with high quality & long life .
Please feel free to reach out if you have any interest .
Why Choose Us
Ecoice Refri Co.,Ltd advantage in ice machine business :
As a leading ice machine supplier in China , we could assure good service , communication , qualified machines and technical support 24 hours online .
High-quality & durable machines , competitive prices .
1.Advanced Technology with famous brands spare parts to assure the machines high quality .
2.Strict QC Quality control in our factory . Each machine is rigorous tested before delivery .
Fast Production & Delivery Efficient Supply Chain:
Short lead times (15 days for standard models,25days for some special models).
Reliable Logistics Partners: Safe shipping via air, sea, or express (DHL, FedEx).
Professional Export Sales & Documents Teams
1. Our Sales managers could reply enquiry , email and calls quickly and professionally .
2. With the quotation , we also share the technical data , drawing , product pictures and product video for a better understanding .
3 . If you cooperate with our company , we will update your order production status every week .
4 . All necessary shipping documents could be shared with clients on time & correctly .
Excellect after-sales support
1.Offer installation training, user manual, maintenance instructions and technical support .
2.Warranty & Spare Parts Supply:
3.Fast replacement parts delivery worldwide by express .
4.Multi-language Support: English, Spanish ,Italian.
Our company is Gold membership on Made in China for many years too .
We 100% sure that we could be your trusted supplier & business partner in China .
