ECO840 Horizontal Quick Freezer IQF Plate Freezer with good quality and low price

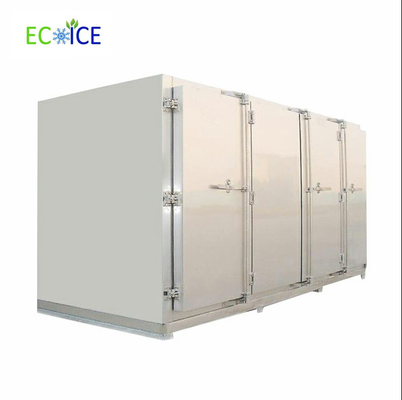

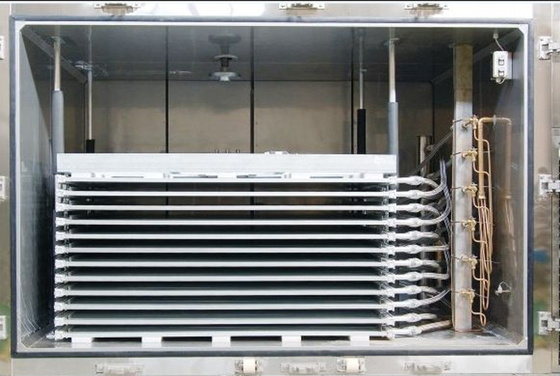

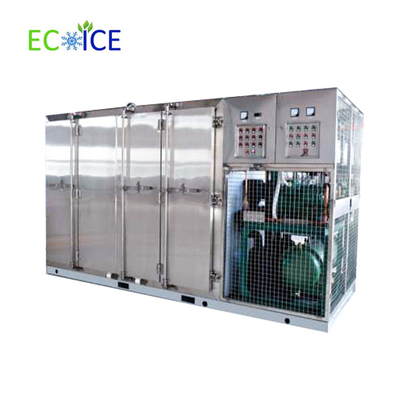

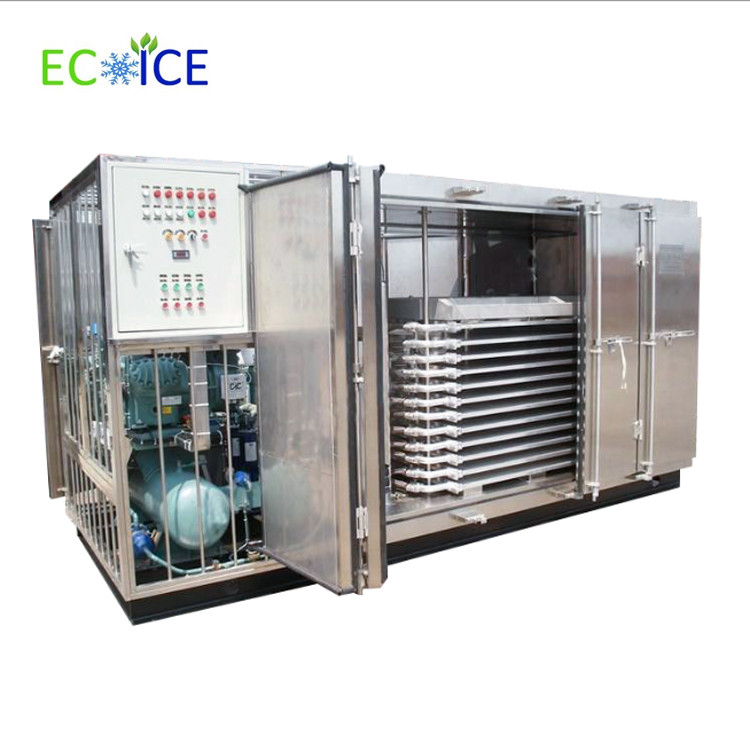

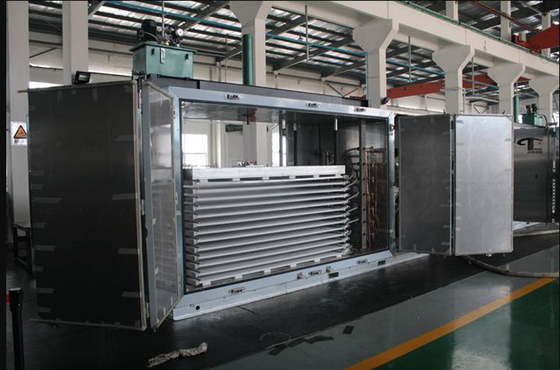

Horizontal Refrigeration Hydraulic Contact Plate Freezer

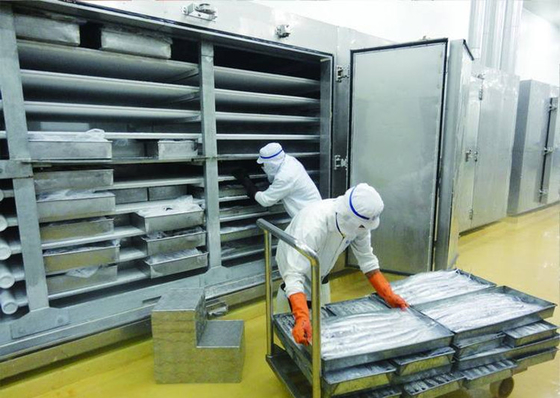

Horizontal Plate Freezer makes the product into pieces, which is an economic and high efficient freezing method. It can adjust the distance of plates and compaction grade base on product. It suits for packed fish, shrimp, meat, and mixed food; vegetable, fruit, boxed cooked food; any bag or tray packed cake and molding products.

• Short freezing time and high freezing quality, it is the best choice for massive food quick-freeze.
• High heat exchange efficiency, quick freezing speed, the energy conservation effect is prominent.
• Ensure food obtains the high quality as well as lower the cost to minimum.
• The unit is high flexibility and vast range of application.

• 	Capacity(kg/shift)			effective layers	single board effective size(mm)	cold consumption (kw)	installed power(kw)	outline dimension(L*W*Hmm)	Weight(kg)
  	fish	cod	shrimp
  ECO720	720	540	384	6	1700*1362	20	1.5	3250*1670*2500	3300
  ECO840	840	630	450	7		24	1.5	3250*1670*2600	3400
  ECO960	960	720	512	8		27	1.5	3250*1670*2700	3500
  ECO1200	1200	960	640	8	2150*1262	32	1.5	3600*1670*2700	4000
  ECO1350	1350	1080	720	9		35	1.5	3600*1670*2900	4150
  ECO1500	1500	1200	800	10		42	1.5	3600*1670*3000	4300
  ECO1650	1650	1320	880	11		46	1.5	3600*1670*3100	4450
  ECO1800	1800	1440	960	12		50	1.5	3600*1670*3200	4600
  ECO2100	2100	-	1200	10	2540*1569	58	1.5	3990*1980*3000	5000
  ECO2520	2520	-	1440	12		70	1.5	3990*1980*3200	5400



If you want to get more detail information, please leave message and email address,
then we will contact you as soon as possible!
