    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE
    Model Number: ECO300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD5000-30000/SET
    Packaging Details: pvc film wrapped
    Delivery Time: around 20 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500000 SET PER YEAR
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Voltage: 380V
    Freezing Type: Compressor System Refrigerant: R22

    hot sale freon R22 evaporative condenser

    hot sale freon R22 evaporative condenser

    hot sale freon R22 evaporative condenserhot sale freon R22 evaporative condenserhot sale freon R22 evaporative condenser

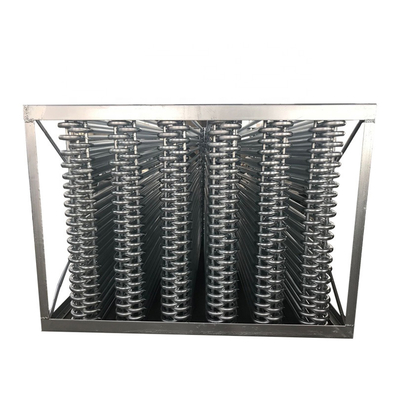

    The evaporative condenser is one of the most important parts of the whole refrigeration system. The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle. The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.

    Model Heat Rejection (kw) Size Weight(kg) Fans Water Pump
    L W H h Transport Operate Air Flow (m³/hr) Power (kw) Water Flow (l/s) Power (kw)
    ECO300 305 2100 1245 3080 1260 1800 2700 30000 2.2 6.2 1.1
    ECO350 356 2100 1420 3080 1260 1960 2950 30000 2.2 6.2 1.1
    ECO400 405 2100 1590 3080 1260 2130 3250 50000 2.2x2 6.2 1.1
    ECO450 455 2100 1790 3080 1260 2300 3550 50000 2.2x2 7 1.5
    ECO500 506 2100 1960 3080 1260 2460 3850 50000 2.2x2 7 1.5
    ECO550 555 2170 2100 3080 1260 2630 4200 50000 2.2x2 7 1.5
    ECO600 605 2400 2100 3180 1360 2950 4650 60000 2.2x2 12.4 2.2
    ECO650 659 2570 2100 3180 1360 3120 4940 60000 2.2x2 12.4 2.2
    ECO700 706 2740 2100 3180 1360 3310 5240 75000 5.5 12.4 2.2
    ECO750 755 2915 2100 3180 1360 3500 5580 75000 5.5 13.9 3
    ECO800 805 3085 2100 3180 1360 3670 5870 75000 5.5 13.9 3
    ECO850 856 3285 2100 3180 1360 3840 6180 75000 5.5 13.9 3
    ECO900 906 3485 2100 3230 4100 4100 6570 90000 2.2x3 24.7 4
    ECO950 959 3655 2100 3230 4270 4270 6870 90000 2.2x3 24.7 4
    ECO1000 1005 3825 2100 3230 4400 4400 7160 90000 2.2x3 24.7 4
    ECO1050 1056 4065 2100 3230 4610 4610 7510 90000 2.2x3 24.7 4
    ECO1100 1109 4235 2100 3230 4930 4930 7960 120000 4x2 24.7 4
    ECO1150 1156 4405 2100 3230 5100 5100 8270 120000 4x2 24.7 4
    ECO1200 1209 4575 2100 3230 5280 5280 8580 120000 4x2 24.7 4
    ECO1250 1256 4775 2100 3280 5450 5450 8880 120000 4x2 24.7 4
    ECO1300 1305 4975 2100 3280 5615 5615 9180 120000 4x2 24.7 4
    ECO1400 1406 5345 2100 3280 5960 5960 9780 120000 4x2 24.7 4
    ECO1500 1509 5690 2100 3280 6390 6390 10470 150000 5.5x2 27.8 5.5



    hot sale freon R22 evaporative condenser

    Main Features

    (1) Power-saving; Water-saving; Space-saving
    (2) High Heat Exchange Ability
    (3) Easy to instal
    (4) Low maintenance cost
    (5) Long lifetime



    hot sale freon R22 evaporative condenserhot sale freon R22 evaporative condenserhot sale freon R22 evaporative condenser
