Name: evaporative cooled condenser
Brand: ECOICE
SKU: ECO300
Price: 5000 USD

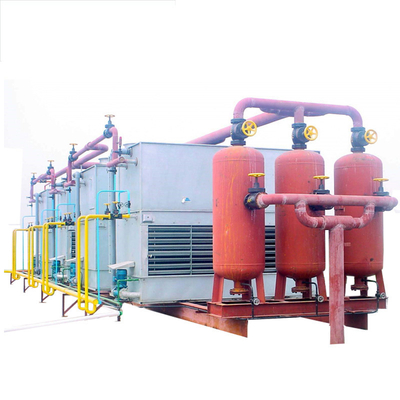

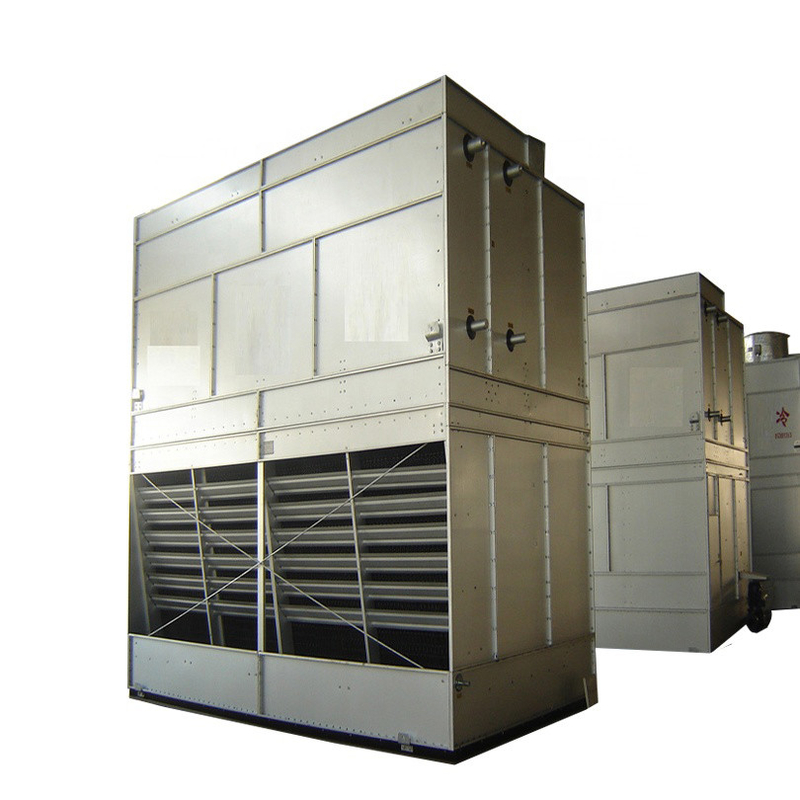

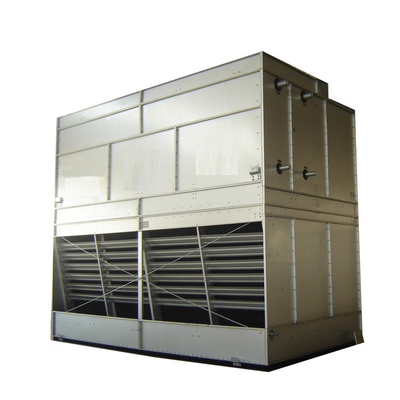

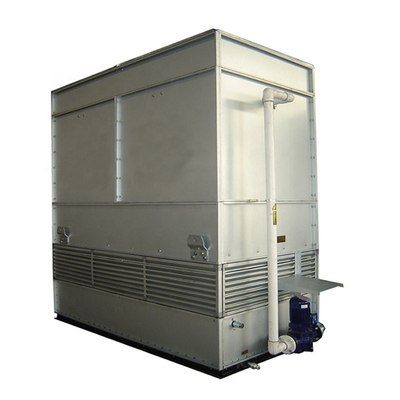

evaporative cooled condenser

Product Details:

Place of Origin:	CHINA
Brand Name:	ECOICE
Certification:	CE
Model Number:	ECO300

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD5000-30000/SET
Packaging Details:	pvc film wrapped
Delivery Time:	around 20 DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500000 SET PER YEAR

Contact Now

Detailed Product Description

Material:	Stainless Steel 304	Voltage:	380V
Freezing Type:	Compressor System	Refrigerant:	R22

evaporative cooled condenser

evaporative cooled condenser

The evaporative condenser is one of the most important parts of the whole refrigeration system. The condenser condenses the refrigerant gas inside the coil and complete a heat exchange circle. The evaporative condenser is widely applied to cold storage, ice-store, chemical industry, supermarket and etc.

Model	Heat Rejection (kw)	Size				Weight(kg)		Fans		Water Pump
Model	Heat Rejection (kw)	L	W	H	h	Transport	Operate	Air Flow (m³/hr)	Power (kw)	Water Flow (l/s)	Power (kw)
ECO300	305	2100	1245	3080	1260	1800	2700	30000	2.2	6.2	1.1
ECO350	356	2100	1420	3080	1260	1960	2950	30000	2.2	6.2	1.1
ECO400	405	2100	1590	3080	1260	2130	3250	50000	2.2x2	6.2	1.1
ECO450	455	2100	1790	3080	1260	2300	3550	50000	2.2x2	7	1.5
ECO500	506	2100	1960	3080	1260	2460	3850	50000	2.2x2	7	1.5
ECO550	555	2170	2100	3080	1260	2630	4200	50000	2.2x2	7	1.5
ECO600	605	2400	2100	3180	1360	2950	4650	60000	2.2x2	12.4	2.2
ECO650	659	2570	2100	3180	1360	3120	4940	60000	2.2x2	12.4	2.2
ECO700	706	2740	2100	3180	1360	3310	5240	75000	5.5	12.4	2.2
ECO750	755	2915	2100	3180	1360	3500	5580	75000	5.5	13.9	3
ECO800	805	3085	2100	3180	1360	3670	5870	75000	5.5	13.9	3
ECO850	856	3285	2100	3180	1360	3840	6180	75000	5.5	13.9	3
ECO900	906	3485	2100	3230	4100	4100	6570	90000	2.2x3	24.7	4
ECO950	959	3655	2100	3230	4270	4270	6870	90000	2.2x3	24.7	4
ECO1000	1005	3825	2100	3230	4400	4400	7160	90000	2.2x3	24.7	4
ECO1050	1056	4065	2100	3230	4610	4610	7510	90000	2.2x3	24.7	4
ECO1100	1109	4235	2100	3230	4930	4930	7960	120000	4x2	24.7	4
ECO1150	1156	4405	2100	3230	5100	5100	8270	120000	4x2	24.7	4
ECO1200	1209	4575	2100	3230	5280	5280	8580	120000	4x2	24.7	4
ECO1250	1256	4775	2100	3280	5450	5450	8880	120000	4x2	24.7	4
ECO1300	1305	4975	2100	3280	5615	5615	9180	120000	4x2	24.7	4
ECO1400	1406	5345	2100	3280	5960	5960	9780	120000	4x2	24.7	4
ECO1500	1509	5690	2100	3280	6390	6390	10470	150000	5.5x2	27.8	5.5

Main Features

(1) Power-saving; Water-saving; Space-saving
(2) High Heat Exchange Ability
(3) Easy to instal
(4) Low maintenance cost
(5) Long lifetime
