    Product Details:

    Place of Origin: CHINA
    Brand Name: ECOICE
    Certification: CE
    Model Number: Industrial evaporative air cooler

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD350-450/SET
    Packaging Details: pvc film wrapped
    Delivery Time: around 20 DAYS
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500000 SET PER YEAR
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Voltage: 380V
    Freezing Type: Compressor System Refrigerant: R22

    Industrial evaporative air cooler

    Industrial evaporative air cooler manufacturing cold room evaporator

    Industrial evaporative air cooler manufacturing cold room evaporatorIndustrial evaporative air cooler manufacturing cold room evaporator

    Industrial evaporative air cooler manufacturing cold room evaporator

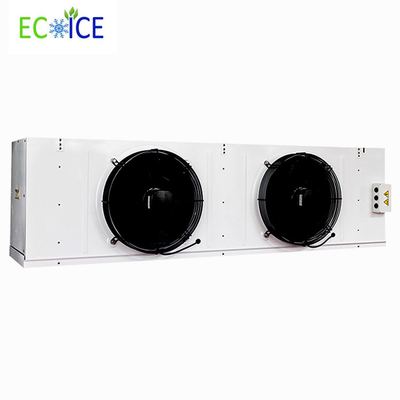

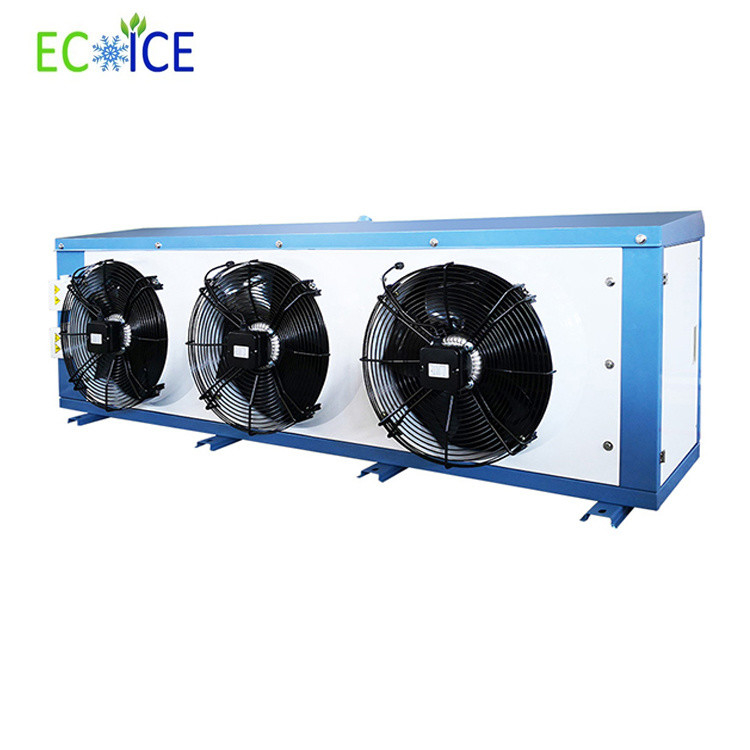

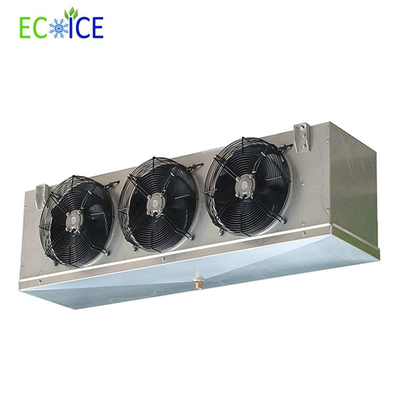

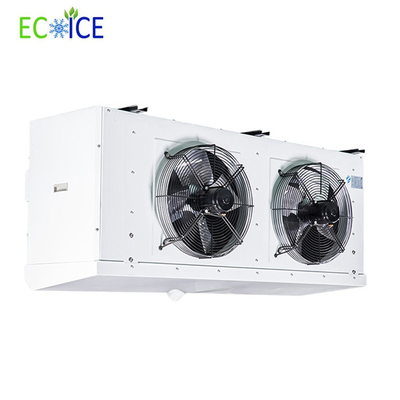

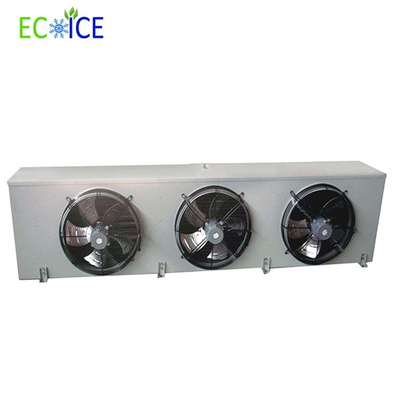

    Evaporator Introduction

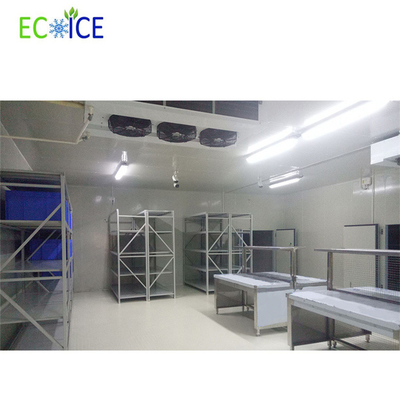

    Cold room evaporator can be used as cooling device in different kinds of cold storages, like chiller room, frozen room and blast freezer room. There are DL, DD and DJ model cold room evaporator, which are suit for different room usages.

    Cold room evaporator features:
    1.Cold room evaporator has reasonable structure, uniform frosting and high efficiency heat exchange.
    2.The shell is made of high-quality steel with surface plastic-sprayed, which is corrosion-resistant. Stainless steel shell is optional.
    3.Cold room evaporator are assembled with high-quality fan motor with low noise, big air volume. Air duct can be customized for long-distance air.
    4.Cold room evaporator is equipped with U-shaped stainless copper pipe evenly, which can shorten the defrosting time.
    5.Water defrosting and electric defrosting are optional.

    How to select evaporator:
    1.When the cold room temperature is around 0℃, select 4.5mm(DL model) as fin space.
    2.When the cold room temperature is around -18℃, select 6mm(DD model) as fin space.
    3.When the cold room temperature is around -25℃, select 9mm(DJ model) as fin space.
    Industrial evaporative air cooler manufacturing cold room evaporator
    Tech.data for DL ceiling type high temperature evaporator
    Note: The tech. data is based on R22,T(r)=0°C, △T=10°C.
    Model
    Ref.capacity
    (kW)
    Cooling Area
    (㎡)
    Fan Qty
    Diameter
    (mm)
    Volume
    (m³/h)
    Fan motor
    (n*w)
    Power supply
    DL-40
    8.2
    40
    2
    400
    2*3400
    2*180




    380V
    50Hz
    3Ph
    DL-55
    11.5
    55
    2
    400
    2*3400
    2*180
    DL-80
    16.7
    80
    2
    500
    2*600
    2*550
    DL-105
    22
    105
    2
    500
    2*600
    2*550
    DL-125
    25.8
    125
    3
    500
    3*600
    3*550
    DL-160
    33.6
    160
    3
    500
    3*600
    3*550
    DL-185
    38.7
    185
    4
    500
    4*600
    4*550
    DL-210
    44
    210
    4
    500
    4*600
    4*550
    Tech.data for DD ceiling type middle temperature evaporator
    Note: The tech. data is based on R22,T(r)=0°C, △T=10°C.
    Model
    Ref.capacity
    (kW)
    Cooling Area
    (㎡)
    Fan Qty
    Diameter
    (mm)
    Volume
    (m³/h)
    Fan motor
    (n*w)
    Power supply
    DD-30
    6
    30
    2
    400
    2*3400
    2*180




    380V
    50Hz
    3Ph
    DD-40
    8
    40
    2
    400
    2*3400
    2*180
    DD-60
    12
    60
    2
    500
    2*600
    2*550
    DD-80
    15.9
    80
    2
    500
    2*600
    2*550
    DD-100
    20
    100
    3
    500
    3*600
    3*550
    DD-120
    24
    120
    3
    500
    3*600
    3*550
    DD-140
    28
    140
    4
    500
    4*600
    4*550
    DD-160
    32.1
    160
    4
    500
    4*600
    4*550
    Tech.data for DJ ceiling type low temperature evaporator
    Note: The tech. data is based on R22,T(r)=-25°C, △T=10°C.
    Model
    Ref.capacity
    (kW)
    Cooling Area
    (㎡)
    Fan Qty
    Diameter
    (mm)
    Volume
    (m³/h)
    Fan motor
    (n*w)
    Power supply
    DJ-30
    5.1
    30
    2
    400
    2*3400
    2*180



    380V
    50Hz
    3Ph
    DJ-40
    7.8
    40
    2
    400
    2*3400
    2*550
    DJ-55
    9.5
    55
    2
    500
    2*6000
    2*550
    DJ-70
    9.5
    70
    3
    500
    2*6000
    3*550
    DJ-85
    12.8
    85
    3
    500
    3*6000
    3*550
    DJ-100
    15.7
    100
    4
    500
    3*6000
    4*550
    DJ-115
    18.5
    115
    4
    500
    4*6000
    4*550

    Industrial evaporative air cooler manufacturing cold room evaporator

    Industrial evaporative air cooler manufacturing cold room evaporator
