|Place of Origin:||CHINA|
|Liquid Flow Rate:||7m3/H|
|Maximum Working Pressure:||3.0MPa|
|Material:||Titanium Tube and PVC-U Shell|
|Minimum Order Quantity:||50pc|
|Delivery Time:||10-15 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||500000PCS Per Year|
|Structure:||Tube Heat Exchanger||Practical Application::||Heating/cooling|

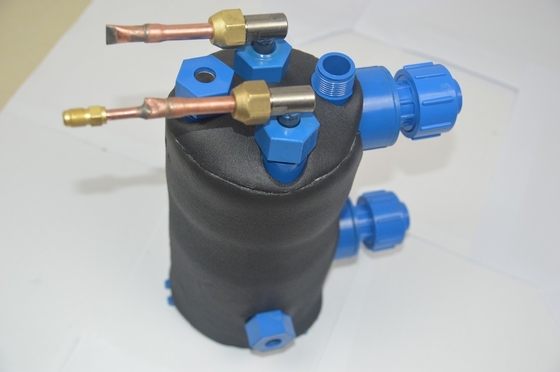

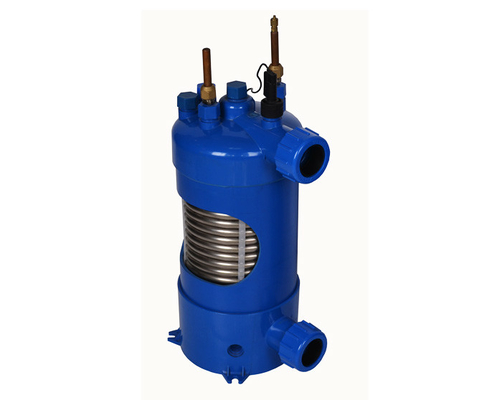

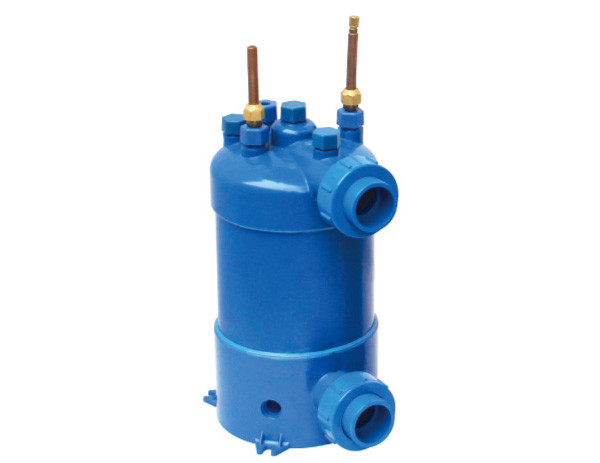

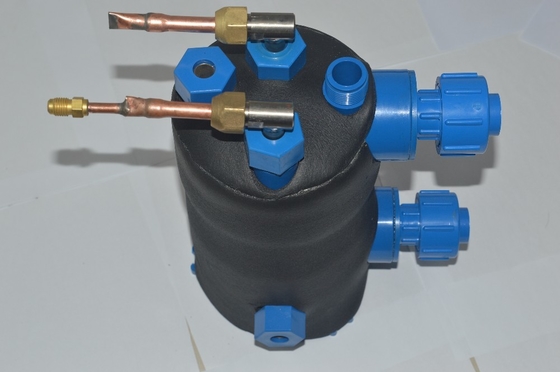

Titanium Heat Exchanger Water Cooling Coil For Sea Water
(in Ti twisted tube)
(in the shell)
|Max.pressure||5.3MPa||0.5Mpa(default), 0.6-0.8MPa (optional)|
Sea water,Plating Solutions,antifreeze,
Swimming pool water, groundwater,juice,ect
1,Please purge air from water system, and ensure the work pressure not exceed the max pressure.
2,Please keep the water clean, suggest to install filter and clean the system regularly.
3,Please drain off water when the machine stopped during the colds season to avoid freezing.
Swimming Pool Heat Pump Titanium Heat Exchanger Technical Information :
Water inlet &outlet
NOTE:Heating capacity is based on water inlet temp.20ºC,Ambient air temp.24ºC(DB)/19ºC(WB)
It used in swimming pool equipment, heat pump units, air conditioning and refrigeration equipment.
2.1 the outer PVC-U materials with acid, strong resistance, corrosion resistance, good compression performance, high strength, light weight ,low price etc, (mold shell size from160 to 315).
2.2 on the top and the base composed of special PVC material with a set of injection molding, conform to the requirements of the ROHS directive, under high pressure, long service life, appearance beautiful, use safety, in high thermal efficiency, convenient installation
2.3 inner tube for the strong corrosion resistance of pure titanium or by HXY patent titanium whorl pipe coil.Efficient titanium threaded pipe is high efficient heat transfer products, reach the advanced level of the current field of heat exchanger heat transfer efficient.
Quality Controlling :
1) Research & development
R&D is the core of products technology, it has a crucial import on products performance ,working condition, production quality, production cost and so on. Our R&D team has many years experience of heat pump, we are improving the COP technology and defrosting items.
In order to control products quality ,meet engineer demand, Suoning purchasing department purchase good quality materials according to each model heat pump BOM list .Suoning demand each spare parts supplier has products testing report, and relative CCC, ISO certificated, from compressor, expansion vale and so on.
Each worker must operate seriously according to production operating standard, pay attention to each installation link, both copper pipe welding and electric controlling connection are both finished with professional technology.
Each heat pump must be checked seriously before leave our factory. COP, heating capacity must reach national standard, all parameters such as current pressure, and water temperature and so on must be recorded, each heat pump test report is stored.
After testing and checking , a qualified heat pump is packaged by plastic protective film and wooden case before send to our warehouse, avoid hitting.
A: We have factory who professionally produces titanium heat exchanger
A: Generally it is 5-35 days according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
